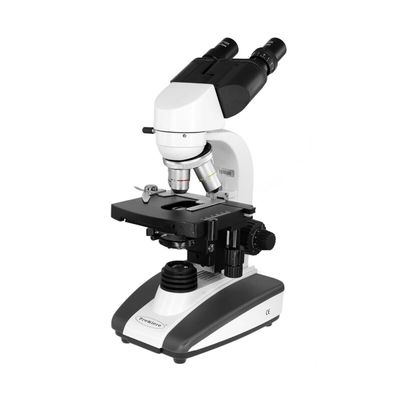

Azer Scientific - Model ES89123 -Cordless Medical & Research Microscope
FromAZER Scientific
The Azer Scientific Cordless Medical & Research Microscope is designed for detailed research applications, offering the optical precision found in larger professional models. Equipped with ball-bearing movements for both the focusing and stage systems, it ensures reliability and precision throughout its lifespan. The microscope's contemporary design incorporates a plastic-plated metal base to minimize heat conduction, enhancing user comfort. Key features include a 30-degree inclined binocular Seidentopf-style head that rotates 360 degrees, paired with 10X widefield eyepieces. It hosts four DIN objectives, including a 100X oil immersion lens for high-magnification needs. The mechanical stage features coaxial drive with rack and pinion adjustments, complemented by an Abbe condenser and variable intensity 4.5V LED illumination system, powered by a rechargeable battery. CE certified, it supports voltage inputs ranging from 100V to 240V, making it versatile for various laboratory settings.Most popular related searches
research microscope
rack and pinion
microscopy
dust cover
filter holder
cooling system
scientific research
clinical microscope
coarse screen
optical microscopy
Our research microscopes offer the same optics as our larger professional scopes with ball bearing movements in focusing and stage systems to ensure long life, reliability and accuracy. Complete with standard popular accessories. Contemporary body design includes plastic plating over the metal base for less heat conduction, more comfort for the user.
- 30 degree inclined binocular Seidentopf style head, rotatable 360º
- Pair of 10X widefield eyepieces
- 4 DIN objectives: 4X (N.A. 0.10), 10X (N.A. 0.25), 40X (N.A. 0.65), 100X (oil immersion, N.A. 1.25)
- 4½” x 5″ (130x125mm) Mechanical stage with coaxial drive/rack and pinion adjustment
- Abbe condenser NA 1.25
- Iris diaphragm with filter holder including blue filter
- Coaxial coarse and fine focusing and low knob position
- Spare bulb, fuse, immersion oil, vinyl dust cover, rubber eye guards
- Variable intensity 4.5V LED cool illumination system
- Built in rechargeable battery with detachable AC power cord
- CE Certified
Dimensions: 6 1/2 x 8 1/4 x 15 in.
Magnifications: 40X to 1000X
Weight: 10 1/2 lbs.
Illuminator: 6V, 20W
Voltage: 100V – 240V
