B-PAC - Model G3 -Advanced Baghouse Performance Analysis & Control
FromAuburn
The B-PAC™ controls, powered by the MICS™ platform, seamlessly collects, analyzes, and reports real-time data, ensuring strict compliance with environmental regulations. With an intuitive interface, remote access capabilities, and automated alarms, the B-PAC™ G3 is the dependable choice for industries aiming to supercharge their productivity.
Most popular related searches
pressure sensor
differential pressure sensor
particulate sensor
grain level sensor
air flow sensor
hazardous area
level sensor
flow sensor
temperature sensor
environmental regulations

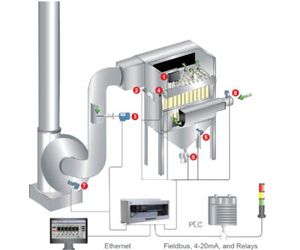

B-PACs™ include requirements for a particulate sensor, differential pressure, and header pressure inputs. Explore the available sensors below or reach out to us for expert guidance:
Strong Return on Investment
- Typical ROI of 1-2 years
- Improved efficiency and reduced downtime
- Optimized energy consumption
- Less wear on machinery
Simplified Compliance Reporting
- Help meet EPA MACT, OSHA and NFPA regulations
- Real-time data analysis, customizable reports, and historical trend analysis
- Advanced data analysis and reporting capabilities
Saves Time and Effort
- Self-cleaning to maintain optimal performance and efficiency
- Eliminate the need for manual data collection and monitoring
- Address problems before they become critical
- Remote access
Technical Data:
- Particulate Sensor: 0.5 pA (Monitor), 5.0 pA (Detect)
- Particulate Minimum Detection: at least 5.0 mg/m3
- Differential/Static Pressure Sensor: -20 to 40”WC
- Header Pressure Sensor: 0 to 150 PSI
- Process Temperature: -13 °F to 450 °F (-40 °C to 898 °C)
- Process Pressure: Full Vac to 10 PSI (0.69 bar)
- Operating Temperature: -13 °F to 158 °F (-25 °C to 70 °C)
- Hazardous Areas: Class I Div. I (Zone 0/20)
- Power: 110-220 VAC (or) 24 VDC
- Output: Analog (up to 16) and Discrete (up to 8)
- Solenoid Outputs: 96
- Input: Analog (up to 16) and Discrete (up to 8)
- Particulate Sensor(s): PS 10-S
- Differential/Static Pressure Sensor(s): DP 20T/SP 20T
- Header Pressure Sensor: SP 10T
- Air Flow Sensor: AF 10T
- Fan Amp Sensor: FA 10T
- Hopper Level Sensor: HL 10T
- Temperature Sensor: TP 10T
- Other Sensors: Contact FS
Available I/O Modules:
- Analog Module: 3 Analog IN, 3 Analog OUT
- Digital Module: 3 Digital IN, 3 Digital OUT
- Mixed Module: 1 Analog IN, 1 Analog OUT, 2 Digital IN, 2 Digital OUT
