B-PAC - Model G3 PRO -Advanced Baghouse Performance Analysis & Control
FromAuburn
The B-PAC™ G3 PRO is a highly advanced and versatile monitoring and control system that is tailored for industries with complex operations and specific requirements. It offers innovative technology for optimum control and EPA/OSHA compliance via its advanced processor/display and the MICS™ platform.
Most popular related searches
pressure sensor
particulate sensor
grain level sensor
state environmental regulations
air flow sensor
differential pressure sensor
site monitoring
filter leak
filter cleaning
level sensor

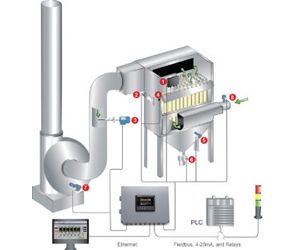

B-PACs™ Require a Particulate Sensor, Differential Pressure, and Header Pressure inputs. Please see available sensors below or Contact Us for guidance:
Advanced Features
- Full color graphical display
- Extensive data and event logging
- Filter leak, solenoid, and diaphragm diagnostics by row
- Widest range of features and configurations
Strong Return on Investment
- Typical ROI of 1-2 years
- Improved efficiency & reduced downtime
- Enhanced operational performance
- Lower operating costs, maintenance expenses, and energy use
Simplified Compliance Reporting
- US EPA MACT, and state environmental regulations
- Real-time data analysis, customizable reports, and historical trend analysis
- Device and process diagnostics to NAMUR 107
Saves Time and Effort
- Efficient filter cleaning with intelligent and comprehensive differential pressure control
- Remote access- no need for on-site monitoring and system management
Technical Data:
- Particulate Sensor: 0.1 pA (Measure), 0.5 pA (Monitor), 5.0 pA (Detect)
- Particulate Minimum Detection: at least 1.0 mg/m3
- Differential/Static Pressure Sensor: -20 to 40”WC
- Header Pressure Sensor: 0 to 150 PSI
- Process Temperature: -40 °F to 500 °F (-40 °C to 898 °C)
- Process Pressure: Full Vac to 100 PSI (6.9 bar)
- Operating Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
- Power: 110-220 VAC (or) 24 VDC
- Output: Analog (up to 32) and Discrete (up to 16)
- Solenoid Outputs: 192
- Input: Analog (up to 32) and Discrete (up to 18)
- Particulate Sensor(s): PS 10-HP
- Differential Sensor: DP 20T
- Header Pressure Sensor: SP 10T
- Air Flow Sensor: AF 10T
- Fan Amp Sensor: FA 10T
- Hopper Level Sensor: HL 10T
- Temperature Sensor: TP 10T
- Other Sensors: Contact US

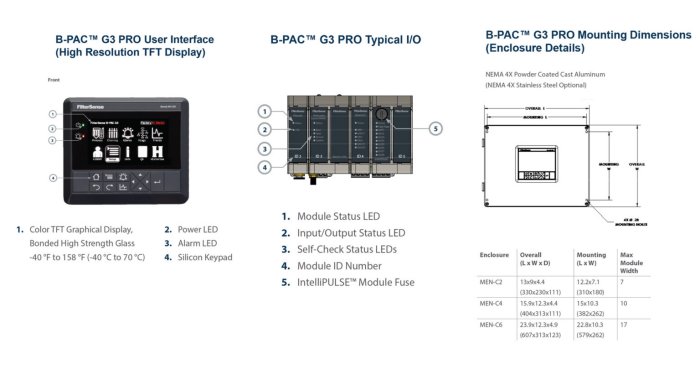

Available I/O Modules:
- Analog Module: 3 Analog IN, 3 Analog OUT
- Digital Module: 3 Digital IN, 3 Digital OUT
- Mixed Module: 1 Analog IN, 1 Analog OUT, 2 Digital IN, 2 Digital OUT
