BAB - Model KL 115 -Pulveriser

SHARE

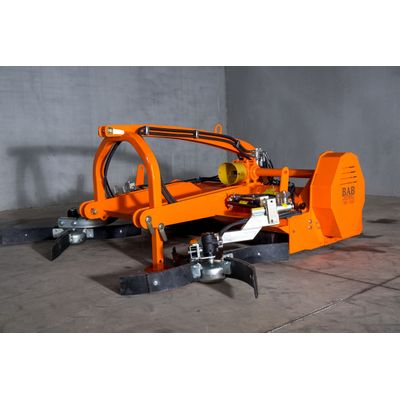

Pulveriser is equipped with double sweeper , hydraulic driven. Rotors of sweeper ø 120 cm , each with 4 double rubberflaps , hydraulic width adjustable.

Most popular related searches
pulverizer
electric valve
hydraulic valve
sweeper
valve box

Tractor needs to be equipped with the following hydraulic:

  • 2x double acting valves for width adjustment of rotors (links and right independent)
  • 1x single acting valve for running rotors
  • 1x free return
Standard machine
  • Chassis 6/10 mm steel with internal counter hooks
  • Rotor ø 180 mm tube with shaft ends ø 50 mm
  • Outside diameter flails ø 440 mm
  • High rotor speed
  • Automatic belt tensioner
  • Heavy duty flail 2,2 kg with fixing bolt M20
  • Gearbox 540 rpm
  • Fix 3-point linkage cat II , ø 28/25 mm
  • Rear roller ø 220 mm with double internal bearing
  • Included drive shaft
Options

Hydraulic – electric valve bloc with control box

In this case tractor needs :

  • 1x single acting valve
  • 1x free return
  • 1x 12 volt plug
