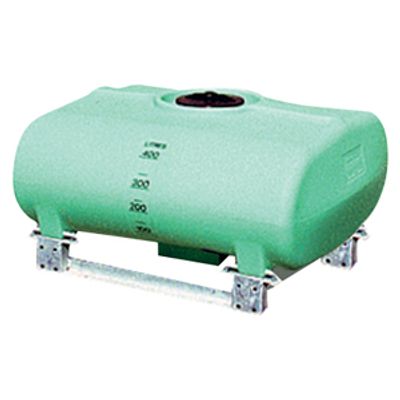

Enduramaxx - Model 500 Litre (173020) -Baffled Horizontal Sump Tank

The unique pin mounting system enables these horizontal water tanks to be mounted securely. Steel mounting straps which can cause fatigue are not required. The horizontal sump tanks require a stand to mount the tank onto to protect the sump.

The 173020 Enduramaxx sump tank 500 litre is designed to provide capacity with the a low centre of gravity. This makes this design one of the best designs available for transporting liquid. These horizontal tanks feature molded-in “part baffles” to reduce sloshing and increase stability during transport. Custom fabricated mounting frames are available for more permanent bowser applications.

Uses of these sump tanks include:

• Transport of molasses, liquid feed and liquid fertilizer
• Liquid and water transport
• Water bowser hire for clean water supply
• Dust suppression

Enduramaxx suggest use of the baffle ball which reduce fluid movement for improved load stability.

For the 500 litre water tank without the sump please look at our horizontal tank page.

Dimensions: (Without Frame)

• Capacity: 500 Litre Horizontal Sump Tank (110 gal)
• Overall Dimensions: 1125 (L) x 1025 (W) x 675 (H) mm

Dimensions: (With Frame)

Overall Dimensions: 1125 (L) x 1025 (W) x 700 (H) mm

• Rotationally moulded for strength from UV stabilised polyethylene
• 4 Mounting points for the tank be mounted
• Unique pin mount system on each mounting leg
• Internal part baffles
• 455 mm dia Lid – vented or non-vented
• Available in a variety of colours – black, light green, translucent natural, blue, yellow & red
• 2″ BSP outlet (other sizes available upon request)
