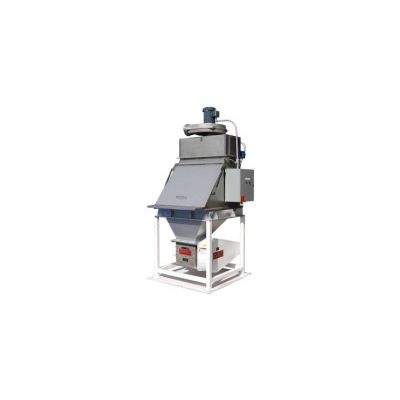

Delumper Bagstation - Bag Dump System
The Delumper Bagstation is a pre-engineered bag dump system designed for efficient unloading, de-agglomerating and freshening of lumpy bagged solids while efficiently introducing them into a production process. These units are designed to facilitate convenient manual opening of small to medium sized bags without creating a dusty environment. But what"s more, this system incorporates a built-in Delumper® processor to reduce agglomerates and lumps and facilitate uniform product flow while the bags are being emptied. The units are provided in several optional configurations to fit specific application requirements. The included Delumper Model 1077L features a heavy body construction with 12" x 12" throat opening, a 5HP 230/460 v. 3phase motor and drive, smooth interior finish, individually replaceable teeth, shaft seals and more.
Delumper Bagstation
- Hood and Stand
- Construction:- T304 Stainless Steel
- Stainless Steel Grating Bag Support
- Hinged load door with dual gas shock lifts.
- Discharge Transition Hopper - T304SS
- Dust Collector System
- Motor: 1.5 HP Fan Motor
- Fan: 12" Dia. Radial Balanced
- Collector Cleaning: Automatic timed air burst reverse air jets.
Delumper Crusher
- Inlet Flange Opening: 12" x 12"
- Material: T304 SS interior in contact with product
- Drive: 5HP TEFC 3ph. Motor and Belt Drive
- One-Piece body construction
- Control
- Factory Mounted and wired
- Dimensions:
- Overall Unit: 51" X 72" x 101"
- Max Bag Size: 1/2" x 43" x 7-3/4"
- Options:
- Optional Construction: T316 SS or Carbon Steel
- Larger Bag Capability
- Unit Without Air Filtration
- Explosion Proof Components
- Bag Slitter
- Differential Pressure Guage
- Takeaway Conveyor
