Ecologix Environmental Systems, LLC

MinilineBag Filter Housings

SHARE

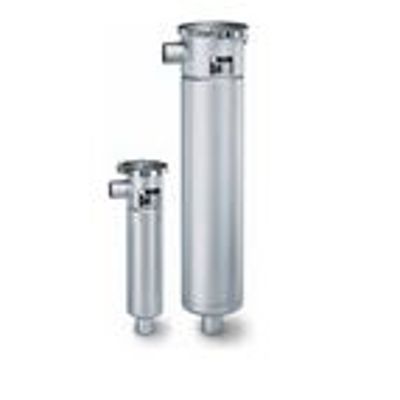

Miniline vessels are designed for self-supported installation. Stainless steel construction means years of reliable, precision filtration with no concern about corrosion problems and at a price that compares favorably to carbon steel. Miniline vessels are available in two different series: EBF for lower pressure applications, and SBF for higher pressure applications.

Most popular related searches
  • Side inlet piping connections
  • Sizes for #03, #04, #05 filter bags
  • Buna N seals standard
  • Stainless Steel basket
  • 1.5″ NPT threaded piping connections (#03 and #04 bags)
  • 2″ NPT threaded piping connections (#05 bags)
  • Max operating pressure of 300 psi
  • Max operating temp of 150 F
  • Concave cover with V-clamp closure
  • 316 SS construction
  • Self-supported installation
