PEP-Filters - Bag Filters

PEP-Filters - Bag Filters

FromPEP Filters

SHARE

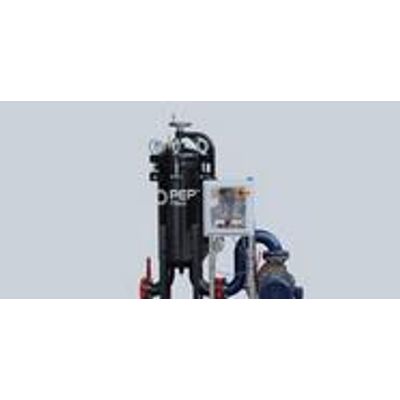

When your next project requires bag filtration we encourage you to consider one of PEP’s pre-engineered systems. Each filter is designed for quick and easy installation. Just pipe it in and wire to a single point contact and you are ready to produce clean water or other filtered fluids. Each PEP BGSF series filter removes suspended solids from water and other process liquids. Contaminants such as pipe scale, grit, wax, metal chips, rust, and airborne debris are found in a broad range of particle sizes. PEP offers a variety of bags to capture particles ranging from 5 to 800 microns.

Most popular related searches

particle sizing

water suspended solids

suspended solids water

Highlights of the BAG FILTERS specifications include the following:

Pre-engineered turnkey filtration package complete with skid assembly, epoxy coated carbon steel vessel, NEMA 4X UL listed control panel, PVC face pipe, cast iron pump
ASME-U stamped vessel up to 300 PSI
(304 / 316) Stainless steel vessel
Dual bag filter automatic change-over
Upgraded PLC controller for dual bag filter automatic change over
Custom designs are available to meet your specific needs
Economical filtration solution
Ideal for low flow, low pressure or zero discharge applications
Short delivery times
Plug and play configuration

Stand alone vessels or pre-engineered turnkey designs
Flows up to 2,000 GPM
Single or multiple vessel configuration
Standard operating pressures to 150 psi
Uses standard commercially available #1 & #2 bags
Quick opening swing bold lid for simple O-ring seal and quick bag change-outs
