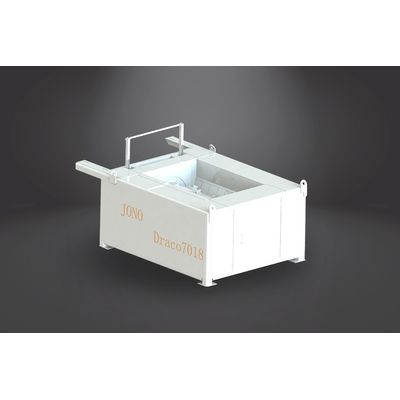

JONO - Model Draco -Bag Opener
It has compact structure and adopts standardized and universal design of the components. It is mainly used for unpacking materials such as plastic bags and chemical fiber bags for better subsequent sorting and recycling. After the material enters the machine, the main shaft with the knives rotates to squeeze the material into the fixed counter knife, and the bag is opened by the tearing of the knife and the fixed counter knife.
The Draco bag opener is compact and designed with the standard module.The machine is mainly used in the automated production line of light industrial and commercial waste treatment where it is responsible for unpacking materials such as plastic bags and chemical fiber bags for better subsequent sorting and recycling.

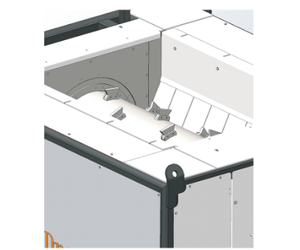

After the material enters the machine, the main shaft with the knives rotates to squeeze the material into the fixed counter knife, and the bag is opened by the tearing of the knife and the fixed counter knife. Afterwards, the material falls off the bag opener.
- Equipment dimensions (lengthx width x height): 3650×2400×2120mm
- Throughput capacity: 15-25t/h
- Rated voltage: 380v
- Rated frequency: 50Hz
- Rated power: 45KW
- Protection level: ip 55
- Equipment weight: 7t
*Through capacity can vary depending on the material.
- The machine frame adopts the steel box frame type, the equipment is rigid and stable, and the weight is light, which is convenient for installation and maintenance of the machine.
- It adopts single-shaft hydraulic motor double drive mode and advanced servo hydraulic pump set, to get the high torque and save energy.
- Continuous positive and negative rotating, smooth operation and small impact.
- The counter knife station can be customized to achieve the control of the opening power to fit different materials.
- Knives are movable, easy to maintain.
