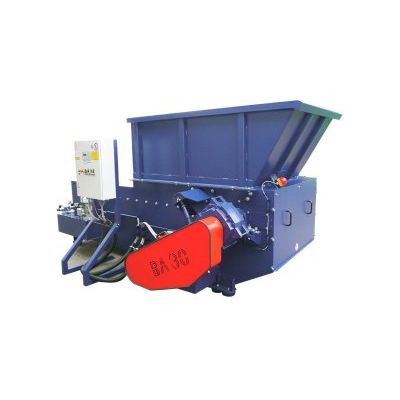

Wagner - Model BA30 -Bale Breaker
The bale breaker is capable of either disintegrating or opening various compressed bales, pushing them towards the following processing steps. According to the material, the throughput amounts to 5,000 kilo per hour. The bale is put on a belt feeder by a stacker. The machine`s intelligent controller then forwards it to the working chamber. The bale is routed by the automatic, load-dependent slider to the slow rotation disintegration rotor.However, entangling is avoided by the rotor’s intelligent cleaning cycle.
- BA 30 is unique both in its operating mode and its technique
- user-friendly operating display
- an individually adjustable add-on system
- solid and compact construction
- easy maintenance tools
- PET bottles
- mixed plastics
- paper and cardboard boxes
A great variety of transport options, to and fro, special funnel shapes and various interchangeable machine base-frames enable perfect adjustment to the specific needs.
Control System
- user-friendly, high performance and adjustable PLC
- 10 freely programmable parameters (operating programmes)
- quick selection of keystroke operating programme
- precise rotor current control for maximum material throughput
- optional frequency converter available
Cutting Knives
- The solid cutting knives are made of special steel and fixed in such a way that they can be exchanged easily for the material-specific adaptation. (low-maintenance and quickly adjustable system)
- different sizes and shapes, for quadruple usage
- optional hard metal cutting knives for an even longer service life
Rotor
- wear-protected by metal sheathing
Drive
- V belt
- proven European, high performance quality drive in patented KIBO construction
- available in different power capacities (15 to 30 kW)
Slider
- hydraulic cylinder with Cardanic suspension
- sift-proof wipers for sealing the surface, adjustable, duplex usage
- roller bearings run by kinematics
Hydraulic Aggregate
- high quality components
- high performance
- shock absorber protecting the slider’s cylinder
Bearing Unit
- solid and low maintenance
- quality self-aligning roller bearings
- freely accessible bearing which resists contamination
Technical Data
- Length: 4150 mm
- Width: 2270 mm
- Height: 2105 mm
- Work area: 1300 x 1400 mm
- Drive power: 15 - 30 kW
- Weight: approx. : 5.000 kg
