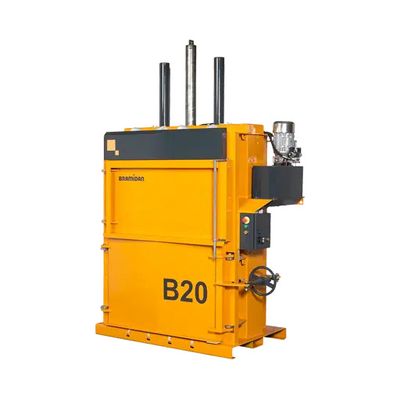

Greenbank - Model B20 -Baler for Plastic, Paper and Cardboard

• Press Force: 20T
• Waste Volume: Medium
• Feed Opening: WxH (mm) 1200 x 480
• Bale Size: WxDxH (mm) 1200 x 800 x 800
• Bale Weight (KG): 200-300
• Waste Types: Cardboard, Plastic

The B20 baler features a wide filling opening for handling larger cardboard boxes. The chamber is equipped with rows of barbs and helps to keep waste materials down. The barbs even work on extremely expandable materials. The machine itself is straightforward to operate and the traditional construction ensures low maintenance costs. When a bale is complete a two-hand operation automatically ejects it.

The B20 offers a 20t press force and low decibels of noise. Bale size is 1200 x 800 x 850mm. Cardboard waste weighs anywhere between 200 and 250kg whereas plastic is between 250 and 300kg.

• Lower your Footprint
  • Bales are compact & collections less frequently required
• Additional Revenue Stream
  • Recyclable bales can be sold for a profit
• Key Benefits
  • Easy to replace strap rolls - They are placed in front
  • Automatic ejection - Two-hand operation ejects the bale
  • Large filling opening - Advantage when handling larger boxes

• Bale weight cardboard (kg): 200-250
• Bale weight plastic foil (kg): 250-300
• Bale size WxDxH (mm): 1200 x 800 x 800
• Press force (t): 20
• Power supply: 3x400V 50Hz 16A
• Motor (kW): 4.0
• Noise Level (dB): 62-64
• Cycle time avg. (sec): 21 / 36
• Dimensions WxDxH (mm): 1775 x 1025 x 2770
• Machine weight (kg): 1240
• Feed opening WxH (mm): 1200 x 480
• Filling height (mm): 965
• Chamber height (mm): 1410
• Stroke (mm): 750
• Number of ties: 4
• Type of tying: Twine
• Full bale light: Yes
• Bale eject: Automatic
