ATM ArnoPress - Model D -Baling Presses
The baling presses of the SPD series are available in five sizes. Types 80-2 and 100-2 compress in two dimensions, while types 100-3 to 300-3 compact the material three-dimensionally. The initial compression is performed using a cutting lid, which enables pre-compaction and the shredding of bulky parts. All components that come into contact with the scrap are lined with high-strength wear plates featuring a special trapezoidal profile. Each machine can be operated manually or automatically. Special versions with loading crane, diesel drive, remote control, or a mobile version on wheels complete the range of optional features.
Wear plates
Depending on the purpose of the press we offer wear plates with square-, trapezoid- and wave-shaped profiles in various material qualities.

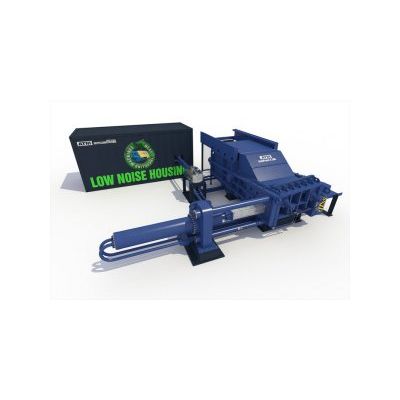

When the press is installed out-doors electrical and hydraulic components can be placed in containers, which also offer additional noise protection and reduction.
Mobility
The smaller presses of this series can be equipped with a chassis and the mobility can be further increased by adding loading cranes.
Hydraulic tank
The two-chamber system guarantees the supply of filtered and cooled oil to the performance-controlled hydraulic pumps.
PZT Pump activation technology
The pump activation technology regulates the required quantity of oil per cylinder, thereby minimising the necessary drive power of the press.
Arno Handle
Material handling from the metal recycling experts.
