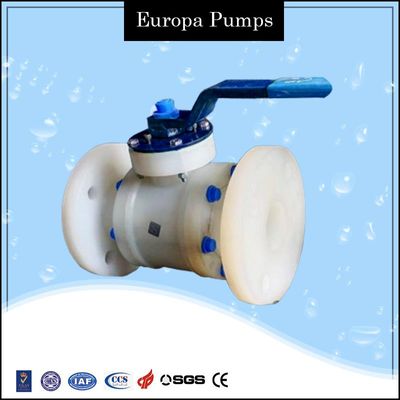

Ceracin - Model PVDF -Ball Valve
Ceracin has designed Ball Valves resistant to most harsh substances up to a temperature of 120 degrees Celsius. These valves have a solid PVDF body, a ball and a stem in 1 piece design. Only two of the flanged ends have inner liners of PVDF (moulded 3.75mm to 5.5mm thick). Also, on these liners, Polypropylene flanged ends get moulded to the highest degree. The other flanged ends consist of Polypropylene. Therefore, PVDF and Teflon materials are the only ones that come in contact with chemicals. We are the top PVDF Ball Valve Manufacturersand we are involved in manufacturing top-notch valves.
Single Piece MS Ball and Spindle with PP/PVDF/ FEP/ PFA/PPH/PTFE Lining Provide more strength to the Valve.
- The K-spindle type has a unique design as it gets secured to the body using a special lock.
- PVDF Ball Valves do not need any upkeep once installed. As a result, you save both time and money.
- The plant`s productivity will grow as it will not get interrupted by changing the ball and spindle again and again.
- Another issue users face is the rubber o-rings in the spindle of a ball valve, which wear out after repeated opening and shutting and cause leaks. The PVDF Ball Valve design solves this issue using PTFE V-seals instead of rubber o-rings. Consequently, the useful life of a PTFE V-Seal will get extended.
- Since the ball and spindle of a plastic ball valve traditionally get made as separate components, the most common complaint from users is that the ball becomes twisted off the spindle, causing the valve useless. The new technology that we have infused solves this problem by making the ball and spindles a single unit.
We Use Premium Raw Materials!
We have a long and proud history givin emphasis to environment social and economic outcomes to deliver places that respond too the complex global forces shaping our future
Ceracinsupplies the top-quality PVDF Ball Valves designed using authentic raw materials. We use Teflon “O” rings to seal the stem and the body. Other than this, employed Teflon ‘O’ Rings have 5mm of steel rings moulded into the flanged ends to provide a tight seal. The metal stem, handle, and stopper inserts assure durability and longevity. We utilise virgin and imported PVDF of premium quality, compliant with international standards. While designing the ball valves, we give attention to details to ensure the effective working of each part of the product. We are, therefore, the topPVDF Ball Valve Suppliersin various markets.
Our Pumps Comes With Exclusive Features!
- Size ranges from 25 mm NB to 150 mm NB
- The Hydrostatic test we carry out for the body and the seat is 10kg/sq.cm.g for the Body and Seat.
- The SS - 316 valve comes with inserted stem, metal handle and stopper to ensure robust and long valve shelf life.
Various Applications In Different Industries!
- Pharmaceutical Industry
- Chemical Industry
- Food and Beverages Industry
- Slurries & Corrosive Fluids
- Liquids & Gases
