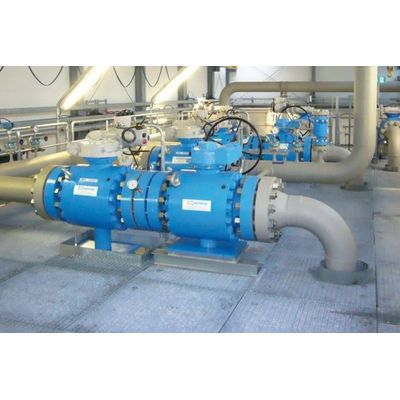

Hartmann - Model TBV Type - Ball Valve

Hartmann - Model TBV Type -Ball Valve

FromHartmann Valves GmbH

SHARE

HARTMANN VALVES ball valves of the TBV series find use when strict safety regulations require a dual pipeline shut-off. Designed for these applications, the HARTMANN VALVES TBV series combines two complete and independent shut-off systems (`Twin Ball Valve“) in just one housing: 0-bubble seal tight, and testable between the shut-off systems. The compact design facilitates operational reliability, and furthermore helps in saving space and lowering costs due to lowered material demands.

Most popular related searches

reduced bore ball valve

safety regulations

compaction system

Design according to DGRL 97/23/EG, API 6D or API 6A
Entirely metallic sealing systems
O-bubble leak rate
Three part housings (split body)pr block design made of forged material
Depending on the nominal width with trunnion-mounted or float-mounted spheres
Blowout-safe operating spindle
Float-mounted, self-centering seat rings with pretensioned spring elements
Automatic housing pressure relief (with trunnion-mounted spheres)
Sealing force dependent on line pressure
Double block and bleed (with trunnion-mounted spheres)
Exchangeability of upper operating spindle seal at full line pressure
No electrostatic charge-up
Fire safe according to API 6 FA and BS 6755/2
Maintenance free

Upon request we manufacture and deliver the ball valves of the TBV series for you:

with Double Piston Effect (DIB)
made of special materials for extreme application areas
soft sealing
with and without drainage and ventilation connections
(option with trunnion-mounted spheres)
with purely metallically sealing drainage ball valves (see option)
as reduced bore ball valves
with special interior and exterior coatings
with electric, pneumatic, or electro-hydraulic drives
as a special design for your special application case

DGRL 97/23/EG and API 6D:

DN 25 – DN 300 (2“ – 12“) to PN 420 (ANSI 2500)
additional nominal sizes and pressure levels upon request!

API 6A:

1 13/16“ – 7 1/16“ to API 10.000
9“ – 11“ x 10“ to API 5.000
13 5/8“ – 16 3/4″ to API 3.000
PSL 1 – PSL 3G
Temp. Class K – Y
additional nominal sizes and pressure levels upon request!
