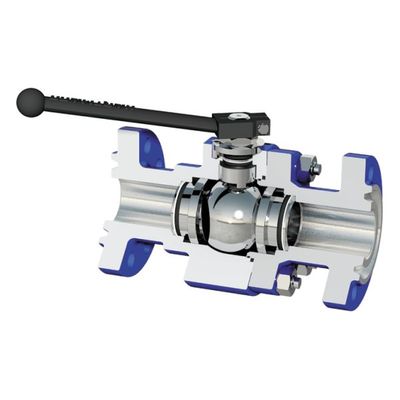

Hartmann - Model ASF Type -Ball Valve
HARTMANN VALVES ball valves of the ASF series - for reliable sealing function, even under more challenging operating conditions These HARTMANN VALVES ball valves with metallic sealing systems are suitable for gaseous and liquid media with solid particle components.
Most popular related searches
- Design according to DGRL 27/23/EG, API 6D or API 6A
- Entirely metallic sealing
- O-bubble leak rate
- Two part housings (split body) made of forged material
- Blowout-safe operating spindle
- Float-mounted, self-centering seat rings with pre-tensioned spring elements
- Sealing force dependent on line pressure
- Exchangeability of upper operating spindle seal at full line pressure
- No electrostatic charge-up
- Fire safe according to API 6 FA and BS 6755/2
- Maintenance free
Upon request we manufacture and deliver the ball valves of the ASF series for you:
- made of special materials for extreme application areas
- weisoft sealing
- as reduced bore ball valves
- with special interior and exterior coatings
- with electric, pneumatic, or electro-hydraulic drives
- fail-safe close or fail-safe open
- as a special design for your special application case
DGRL 97/23/EG and API 6D:
- DN 15-300 (1/2″-12″) to PN 690 (ANSI 4500)
- DN 40-500 (1 1/2″-20″) to PN 420 (ANSI 2500)
- DN 100-700 (4″-28″) to PN 250 (ANSI 1500)
- DN 200-900 (8″-36″) to PN 150 (ANSI 900)
- DN 1000 (40″) to PN 100 (ANSI 600)
- additional nominal sizes and pressure levels upon request!
API 6A:
- 1 13/16“ – 2 1/16“ to API 10.000
- PSL 1 – PSL 3G
- Temp. class K – Y
- additional nominal sizes and pressure levels upon request!
