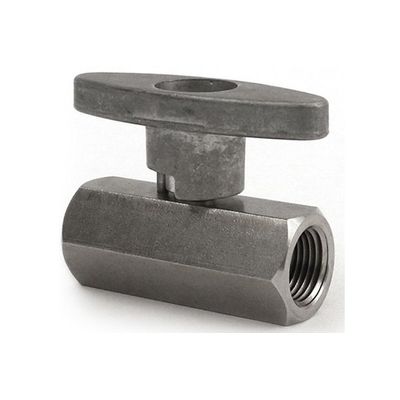

ALCO - Model A Series -Ball Valve
High integrity one-piece bar stock ball valves proven to be better than cast type products. The high quality ‘A’ Series low to medium pressure ball valve range is designed with the internals being loaded through the threads.
Most popular related searches
- UNI Directional Flow
- Severe Temp Rating
- NACE Approved
This design offers a safe and inexpensive style of valve suitable for a wide range of applications. It also offers fewer potential leak paths than cast or 3 piece valves and it is a rugged one piece solid body format. This valve is suitable for water, oil or gas applications. It is manufactured with a compact ‘T’ bar handle as standard with many more options available such as lever handle or locking device etc.
- Valve Types
- Single Isolate
- Pressure Rating
- Up to 2000 psi
- Temperature Rating
- -40°C up to 230°C
- Bore Size
- 10mm - 32mm
- Connection Size
- 1/4" - 2"
- Inlets
- NPT
- BSPP
- BSPT
- Outlets
- Threaded
- NPT
- BSPP
- BSPT
- Handles
- T Bar
- Lever Option
- Lockable
Materials of manufacture are 316 SS as standard with other material options available.
- Material Construction
- Stainless Steel 316
- Monel
- Duplex
- Super Duplex
- 6Mo
- Titanium
- Hastalloy
- Zirconium
- Inconel
- Incoloy
- Carbon Steel
- Ali Bronze
- Brass
- Other Materials can be made available upon request
- Trim Material
- Options available upon request.
- Bolting Materials
- Not Applicable
- Material Traceability
- Yes
