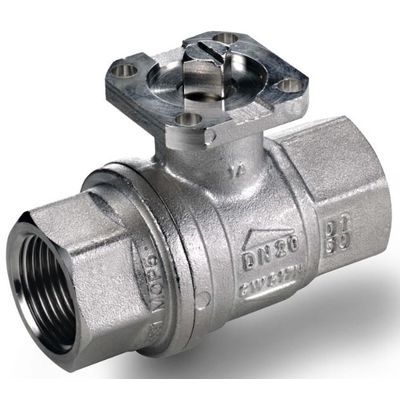

BONOMI - Model k.6405 -Ball Valves
More and more automation is required at all levels in our society and the k.64 RuB range is the answer to all needs for reliable actuated ball valve. The line has successfully passed 100,000 cycle life tests and is available in a variety of standard and customized configurations some with special seat design to compensate for wear.
Most popular related searches
ball valve
pneumatic actuator
rack and pinion
electric actuator
sealing system
RoHS compliance
actuated valve
pneumatic actuator valve
spring return actuator
valve operator
Quality
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Silicone-free lubricant on all seals
- Chrome plated brass ball for longer life
Stem
- Blowout-proof nickel plated brass stem
- Maintenance-free, double FPM O-rings at the stem for maximum safety
Threads
- EN 10226-1, ISO 228 parallel female by female threads
Operating Device
- Integrated sturdy ISO 5211 flange allows direct mounting of electric and pneumatic actuators, with no bracket or coupling required. See RuB line of electric and pneumatic actuators.
Options
- Special valve configurations available upon request
- s.64 configuration featuring NPT taper ANSI B.1.20.1 female by female threads, unplated body, reinforced seats and brass or stainless stem and ball
- Rack and pinion pneumatic actuator (spring return or double acting)
- Compact power electric actuator for some sizes
- Manual lockable handle
Approved by or in compliance with
- DVGW (Germany) – MOP 5 B 0,1
- SVGW (Switzerland)
- GOST-R (Russia)
- EAC – Declaration of conformity (Russia, Kazakhstan, Belarus)
- RoHS Compliant (EU)
Body
- Hot forged sand blasted, nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
- Integrated ISO 5211 and DIN 3337 mounting flange for universal connection to actuator
- Finest brass according to EN 12165 and EN 12164 specifications
- Valve length according to DIN 16722 M3
Sealing
- Pure PTFE self-lubricating seats with flexible-lip design
Flow
- 100% full port for maximum flow
Working pressure & temperature
- 40 bar (600 PSI) non-shock cold working pressure
- For use with dangerous fluids pressure rating is 5 bar (72 PSI)/ HTB Class B 0,1
- -40°C to +170°C (-40°F to +350°F)
- WARNING: freezing of the fluid in the installation may severely damage the valve
- For use with dangerous fluids temperature rating is -20°C to +60°C (-4°F to +140°F)
PED directive
- Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by ICIM (0425)
