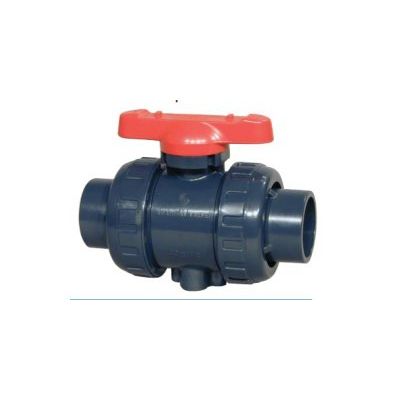

Model Type 21 -Ball Valves

Features: True Union design for easier installation or repairs without expanding pipe system. Blocked in both directions allowing valve union disassembly from either side under full pressure. Type 21 Ball Valves carry a two-year guarantee. Materials: PVC, CPVC, polypropylene, PVDF with EPDM, or FKM elastomer seals. Pressure rated to 230 psi (PVC, CPVC, PVDF), full vacuum rated. Double 0-ring stem seals and blow out proof stem design for added leak protection. Integrally molded ISO mounting pad for both manual accessory and actuation assembly. Integrally molded base pad to surface or panel mount valves securely. PTFE seats with elastomeric backing cushions ensure bubble-tight shut off and low cycling torque while compensating for wear. Built-in spanner wrench on handle for valve repair. Socket and threaded end connectors included with all ½-2” PVC and CPVC valves,. ½-1”CPVC threaded end connectors are stainless steel reinforced for high temperature performance.
