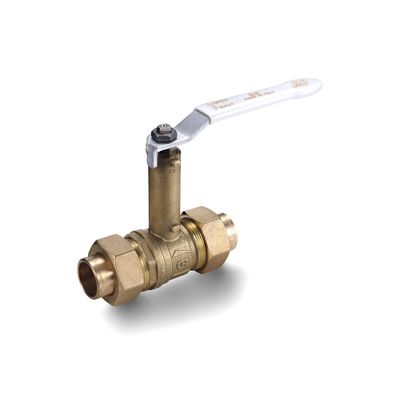

BONOMI - Model s.21 DZR -Ball Valves
Several governmental authorities recommend use of special alloys for valves handling water in areas where there is a problem of dezincification. RuB DZR valves are designed to meet such requirements. Through the use of new technology these valves retain the reliability and competitiveness of brass, but are comparable to bronze in corrosion resistance. Be kind with yourself, make sure the valve that brings you pure fresh water is an RuB DZR valve.
Most popular related searches
Quality
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Chrome plated DZR brass ball for longer life
- Handle stops on body to avoid stress at stem
Body
- Hot forged sand blasted DZR unplated body and cap sealed with Loctite® or equivalent thread sealant
- Dezincification resistant ADZ-T and ADZ-P brass approved to SBN- PFS 1983:2 and NR- BFS 1988:18 specifications
Stem
- Maintenance-free, double FPM O-rings at the stem for maximum safety
Sealing
- Pure PTFE self-lubricating seats with flexible-lip design
Connections
- Solder ends to NS1759 and ISO 2016
Flow
- Full port to DIN 3357 for maximum flow
Handle
- Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
- Handle removable with valve in service
- WARNING: do not exceed reasonable temperature and/or electrical load
Working pressure & temperature
- 16 bar (230 PSI) non-shock cold working pressure
- -40°C to +170°C (-40°F to +350°F)
- Applicable to valve, not to solder joints
- WARNING: freezing of the fluid in the installation may severely damage the valve
Options
- T-handle
- Oval lockable handle
- Stainless steel handle (1.4016 / AISI 430)
- Patented locking device
- Stubby handle
- RuB memory stop designed to be installed with our stubby handle
Upon request
- Stainless steel ball (1.4401 / AISI 316)
- Glass filled PTFE seals
- Custom design
PED directive
- The product described in this document meets the requirements of PED Directive 2014/68/UE and according to art.4 par.3, it does not require CE marking; it cannot be used with dangerous gases in sizes larger than 25mm
Approved by or in compliance with
- RoHS Compliant (EU)
- GOST-R (Russia)
- Kiwa-Swedcert (Sweden)
- Ri.se. / Boverket (Sweden)
