Pacson Valves Limited
Pacson - Model G1 Range -Ball Valves

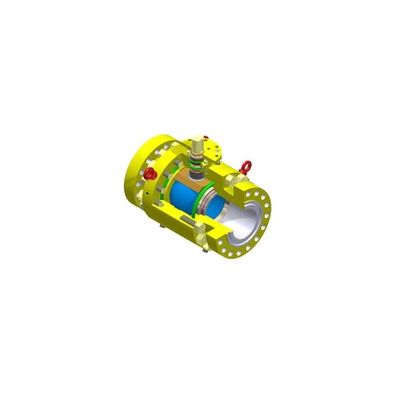

Pacson’s new 4” through 12” full and reduced bore trunnion ball valve range, optimised for size and weight using advance non-linear Finite Element analysis techniques. Subsea or topside application provided as standard. Fire tested API 6FA: ANSI 150 through 2500, API 2000 to 5000.
Most popular related searches
ball valve
quarter-turn ball valve
reduced bore ball valve
fire test
fire testing
elemental analysis
full bore ball valve
ROV operation
- Metal or soft seated options
- Spring energised seats with secondary sealant injection facility
- Elastomeric, Polymeric or metal seal options
- Dual Stem seal arrangement with facility to inject emergency sealant
- Suitable for Gear, Direct ROV or actuator operation
- Double Block and Bleed is standard, with double isolation and bleed a standard option
- Anti-blow-out Stem - secondary stem seal and fireseal serviceable following removal of actuator mounting plate
- Ease of Maintenance - Modular topworks (including valve bonnet and stem) can be replaced or upgraded with valve in situ
- Mounting Plate is Bolted to Body not Bonnet – pressurised bonnet joint is not subjected to the additional side loads and bending caused by the actuator or the operator’s weight
