Absolute Ozone - Ball Valves

Absolute Ozone - Ball Valves

FromAbsolute Ozone®

SHARE

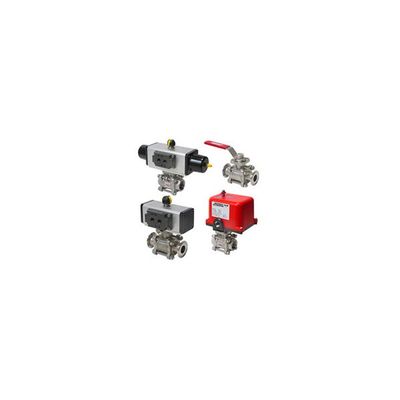

Ozone Compatible Valves: The 36 is a full port, 316 stainless steel, and 3 piece ball valve. It is available with threaded ends (36N), socket weld ends (36S), quick clamp ends (36C) or quick clamp ends with cavity filler seats (36CCF*). It can be equipped with a manual handle or with pneumatic or electric actuators. A full range of accessory items is available including limit switches, solenoid valves, positioners, and manual override devices.

Most popular related searches

3-piece ball valve

air drying system

pollution control system

electric actuator

process control system

valve positioner

autoclave system

Silicone Free
Full Port for unobstructed flow
Live-loaded Pyramidal stem seal design
Quick quarter-turn rotation
High cycle stem design [details]
Integrated mounting pad for actuators
Compact assembly
Complete line of accessories

Temperature Range

30 to 380°F
Max. Pressure:
1000 PSIG

End Connections

1/4" to 3" NPT Threaded
1/4" to 2" Socket Weld
1/2" to 4" T-Clamp
1/2" to 4" T-Clamp w/Cavity Filler

Typical Applications

Air Drying Equipment
Sterilizers
Autoclaves
Pollution Control Equipment
Process Control Applications
Laundry Equipment
Textile Dyeing & Drying
Bottling & Dispensing Equipment
Ink & Paint Dispensing
Industrial Compressors
Chemical Process Industry
Pharmaceutical Chemical Industry

Materials

Seats - PTFE or RPTFE
Stem Seals - PFFE, Viton® or RPTFE
Body, Ball, & Stem - 316SS

Available Actuators

Electric
Pneumatic (spring return)
Pneumatic (double acting)
Manual Handle
