  4. Aqua-Azul - Model B-1-PSM - Ballast

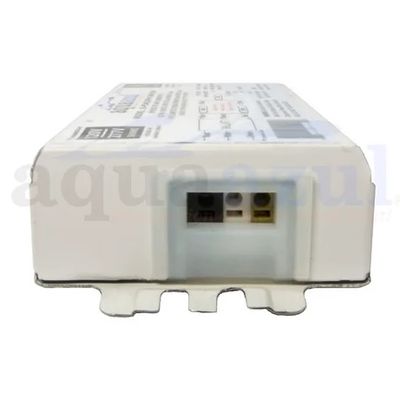

Aqua-AzulModel B-1-PSM -Ballast

SHARE

High Power Factor. Input Voltage: 120 - 277. Hz: 50/60. Max Current: 0.44 - 0.12A. Sound Rating: "A". Ballast type: Instant start. USE: 18 Gage Solid Copper Wire (Stripped to 3/8") . Input/Protection: Fuse. Output/Protection: -. MIN. Operating Temp: -30 0C(`-20 0F). MAX. CASE TEMP: 700C(158 0F). Approvals/Class: UL Listed, Class " P ", 1 Outdoor. Approvals/Class: * UL /cUL Listed, Class " P ", 1 Outdoor.
