BRT HARTNER - Model BS Series -Ballistic Separator

The Separation Process takes place in only one step. Here, the material is broken down into a rolling, at and sieve fraction, which is highly suitable for further processing. In the separation of single stream, light packaging and comingled waste, BS is the first choice for effective sorting process with low cost and high availability.

• Rugged machine-design for durable application
• Patented eccentric-crankshaft with rugged changeable bearings
• Many types for each purpose

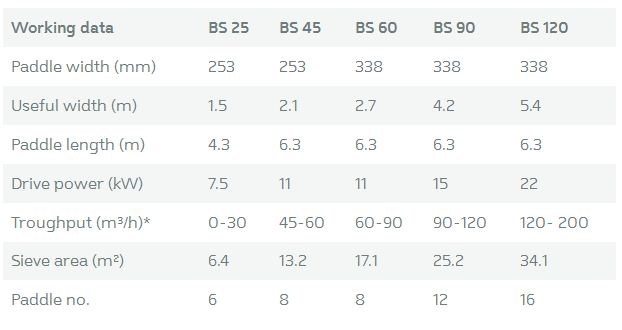

• Sieve area from 6m2 to 34m2
• 4 useful width (1.57 / 2.07 / 2.6 / 2.76m), 6 + 8 + 10 sievepaddle at each machine
• 2 sievepaddle-widths available (253/338mm)
• Troughput up to 200m3/h
• Two different paddle types
• Screwable Sieve mesh
