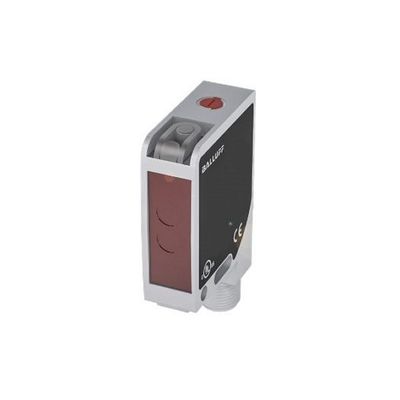

Balluff - Model BLT0009 -Luminescence Sensors
FromBalluff GmbH
Our BLT luminescence sensors (with UV light sensor) detect objects that a human cannot see without help. They are useful for detecting invisibly marked products or lubricants that were previously enriched with luminescent particles.
Most popular related searches
- UV light – no external lamp or light source required
- Programmable with the touch of a button – without separate software
- Robust, industrial-grade configurations
- Series : 21M
- Dimension : 12 x 50 x 42.5 mm
- Interface : PNP NO/NC
- Input function : Key disable on/off Teach Contrast (switching point)
- Principle of operation : Luminescence Sensor
- Principle of optical operation : Diffuse sensor, Focused
- Special optical feature : Coaxial Optics
- Beam characteristic : Focused
- Light type : Ultraviolet light
- Light spot size : Ø 1.5 mm at 10 mm
- Range : 0...40 mm
- Connection : Connector, M12x1-Male, 4-pin
- Housing material : Zinc, Die casting, Powder coated Aluminum
- Material sensing surface : Glass
- Operating voltage Ub : 10...30 VDC
- Approval/Conformity :
- cULus
- CE
- UKCA
- WEEE
