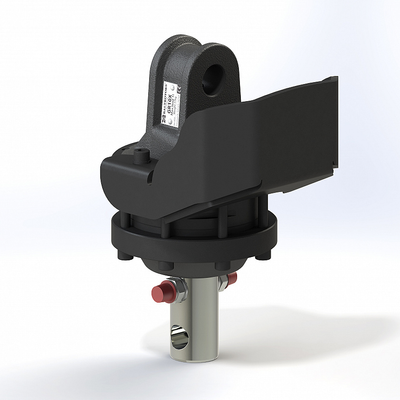

Baltrotors - Model GR10X -Rotator
FromBaltrotors Ltd
Modification of GR10 rotator, equipped with extra-durable arched hose guard for even better protection of hoses. Upper connection - EYE form factor of the knuckle joint. Lower connection - AXLE form factor to be built in grapple/tool.
- Rotation Unlimited
- Max. axial load static 10 kN (2250 lbf)
- Max. axial load dynamic 5 kN (1125 lbf)
- Torque 450 Nm (332 lb ft)
- Rec. oilflow 10 l/min (2.6 US gallon)
- Weight 11 kg (24 lb)
- Upper connection L 45 mm (1.77 in)
- Upper connection D 25 mm (0.98 in)
- Lower Axle d & hole D
- Lower Flange d x pos & bolt hole D
- Warranty 2 years
