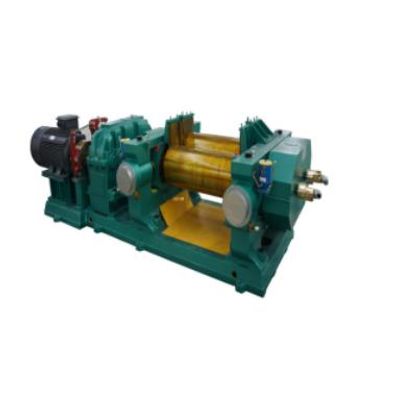

Baofeng - Rubber Crack Mills

Motor: 6-220Kw. Reducer: ZSY500-31.5-. Main Roller Diameter(Groove): 660mm. Assist Roller Diameter: 610mm. Roller Length: 1100mm.

Most popular related searches

Main and Assist Roller Speed Ratio: 1.7:1
Main Roller rotate speed: 31 r/min
Main Roller line speed: 64 m/min
Output Production(2-12mm): 1.5-1.8 mt per hour
Mill Roll support: 8 x 24064CA/W33 Bearings
Bearing lubricating method: Electric Pump
Roller Material: Centrifugal alloy, Roll body is alloy, Roll core is magnesium iron
Roller Cooling Method: Drilled Surrounding Cooling
Electrical Device: CHNT
Machine Size: L5192 x W2230 x H1750mm
Machine weight: ≈26.5 mt

Specification
