Bareiss - Model THT1000 -Tablet Breaking Force Tester

SHARE

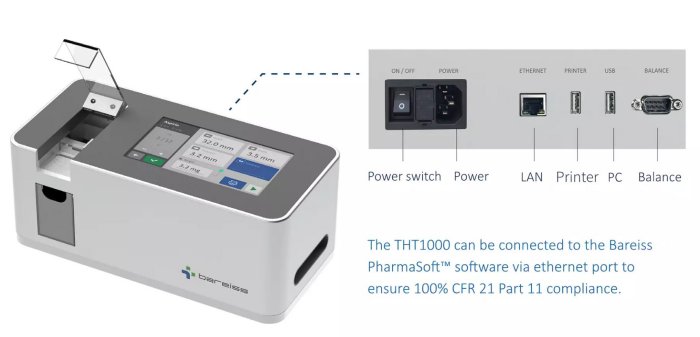

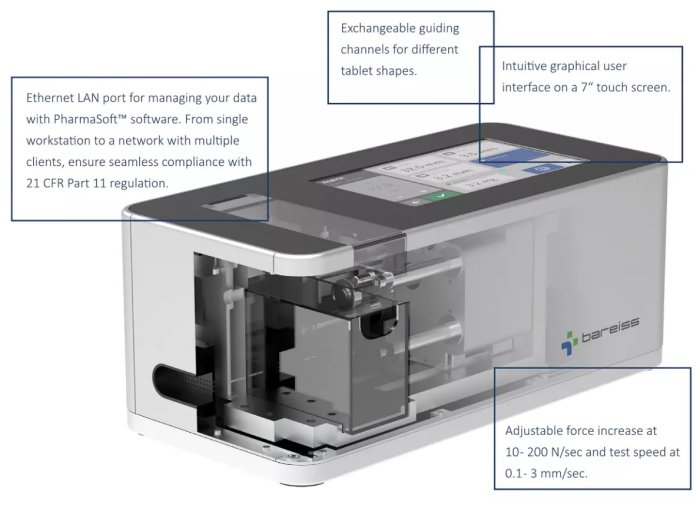

A breaking force tester featuring advanced and precise measuring technologies. The Bareiss THT1000 is a tablet breaking force tester designed to provide an intuitive user experience thanks to its beautiful UI designs implemented in both its hardware and software. The breaking force test has a load range of up to 1000 N with the setting for test speed (mm/sec) and addition of force (N/sec). Besides breaking force, the THT1000 can also provide parameters of length, width, thickness and weight of the tablet (an external scale required). A thermal printer can be directly connected to the THT1000 for easy measurement printout.

Most popular related searches
integrity monitoring
  • Breaking Force
  • Thickness
  • Diameter
  • Width
  • External Printer
  • External Scale

PharmaSoft™ has made software use easier than it ever was before.
PharmaSoft™ is a modularized software that is aimed to provide a common platform with integration of different test categories. Whether it is a standard test for one single measurement or a series of tests that requires a complex test sequence editing, PharmaSoft™ is designed to offer all levels of user’s demands. Features such as user authorization, system log, project management, version control and custom report are all at your fingertips.

Diameter / Length / Width
Measuring range: 1-36 mm
Resolution: 0.01 mm
Units of measurement: mm / inch

Thickness
Measuring range: 1-36 mm
Resolution: 0.01 mm
Units of measurement: mm / inch

Hardness
Measuring range: 3 - 1000 N
Accuracy: +/- 1N
Units of measurement: Newton (N), Kilogram-force (kgf), Pound of force (lbf)

Measuring principle
Constant force: 10- 200 N/ sec (programmable)
Constant speed: 0.1 - 3 mm/sec (programmable)

Interfaces
2 x USB 2.0

Power supply
100 - 240 V, 50-60 Hz, 90 W

Configuration: THT1000

Hardness: ?
Diameter / Length: ?
Width: ?
Thickness: ?
Weight (Integrated): -
Weight (External): ?

Dimensions / Weight
LWH 320 x 155 x 130 mm / approx. 9.5 kg

Software
PharmaSoft™: ?
