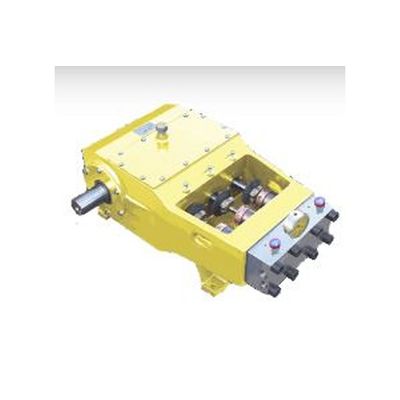

Jetstream - Model 4200 UNx -Bareshaft Pumps
4200 Series UNx™ triplex pumps can handle input power up to 325 hp (242 kW). Output from 63 gpm at 8,000 psi (238 l/min at 550 bar) to 11.9 gpm at 40,000 psi (45 l/min at 2750 bar).
Most popular related searches
- No. of Plungers : 3
- Plunger Stroke : 4.25 in (108 mm)
- Discharge Ports : 3/4" NPT Female (Model 4215)
- 20K Port Female (Model 4220)
- 40K Port Female (Model 4240)
- Top Ports (Accessory) : 1/2" NPT Female (Model 4215)
- 20K Port Female (Model 4220)
- 40K Port Female (Model 4240)
- Pump Speed Range : 173-518 RPM
- Power End : 4200HD
- Max Power Input : 325 hp (242 kW)
- Max Frame Load : 17,750 lb (79 kN)
- Total Weight : 1,800 lb (820 kg)
- Oil Type : 80W-90
- Pump Oil Capacity : 9 gal (34 l)
