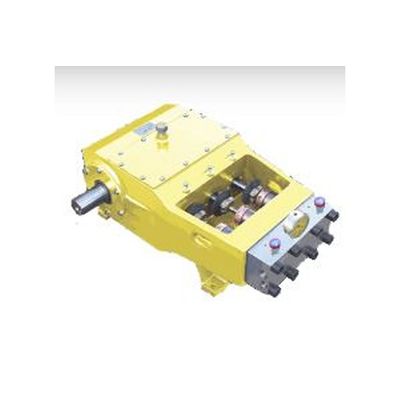

Jetstream - Model 3600 UNx -Bareshaft Pumps
3600 UNx triplex pumps can handle input power up to 200 hp (149 kW). Output from 46 gpm at 6,000 psi (173 l/min at 400 bar) to 7.3 gpm at 40,000 psi (28 l/min at 2750 bar).
Most popular related searches
- No. of Plungers 3
- Plunger Stroke 3.60 in (92 mm)
- Discharge Ports 3/4" NPT Female (Model 3615)
- 20K Port Female (Model 3620)
- 40K Port Female (Model 3640)
- Top Ports (Accessory) 1/2" NPT Female (Model 3615)
- 20K Port Female (Model 3620)
- 40K Port Female (Model 3640)
- Pump Speed Range 183-550 RPM
- Max Power Input 270 hp (201 kW)
- Max Frame Load 17,750 lb (79 kN)
- Total Weight 1,720 lb (780 kg)
- Oil Type 80W-90
- Pump Oil Capacity 9 gal (34 l)
