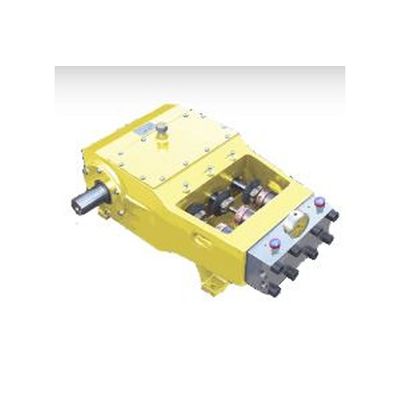

Jetstream - Model 3000 UNx -Bareshaft Pumps
3000 Series UNx™ triplex pumps can handle input power up to 150 hp (112 kW). Output from 23 gpm at 9,500 psi (88 l/min at 650 bar) to 5.2 gpm at 40,000 psi (20 l/min at 2750 bar).
Most popular related searches
- No. of Plungers : 3
- Plunger Stroke: 3.00 in (76 mm)
- Discharge Ports: 1/2" NPT Female (Model 3015)
- 20K Port Female (Model 3020)
- 40K Port Female (Model 3040)
- Top Ports (Accessory): 1/2" NPT Female (Model 3015)
- 20K Port Female (Model 3020)
- 40K Port Female (Model 3040)
- Pump Speed Range: 200-600 RPM
- Max Power Input: 150 hp (112 kW)
- Max Frame Load: 9,500 lb (42 kN)
- Total Weight: 970 lb (440 kg)
- Oil Type: 80W-90
- Pump Oil Capacity: 5 gal (19 l)
