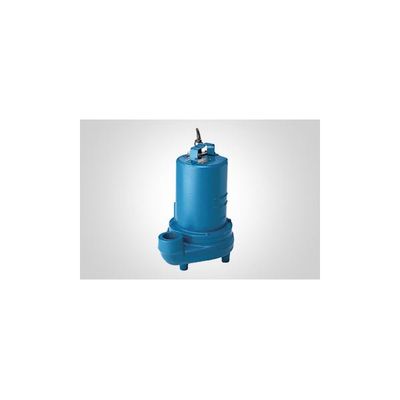

Barnes - Effluent Pumps

Barnes - Effluent Pumps

Effluent pumps are designed for handling dirty water in typical septic tank / effluent applications. High temperature models are available. Barnes effluent pumps are designed to handle most low and high head effluent applications.

Most popular related searches

industrial wastewater

industrial pump

sewage

water tank

Materials of construction and performance highlights:

Flows To: 130 g.p.m.
Heads To: 110 feet
Discharge: SP & EP 1 - 1/2 inches
Others 2 inches
HP: 0.33 - 1.5
RPM: 1750 or 3450
Voltage: 120 - 600

Key product characteristics and benefits:

Cast iron construction
Stainless Steel Shaft
CSA Listed

Customize this product with the following features and materials:

High Temperature Models
Breakaway Fittings
Additional Cable lengths
Seal Materials
Impeller Trims

Best solution for the following operations:

Sewage
