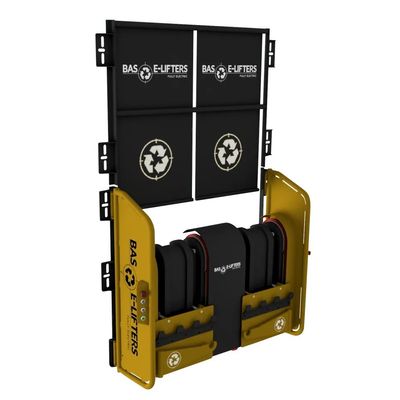

BAS - Model Type B -Basic Electric Bin Lifter

Fully Electric, Automatic, Double-split-chair Bin Lifter with two combs

• Fits on every rear-loading RCV with standard DIN frame (which we can supply if needed).
• Demountable
• High-level lifter
• Plug & play - Uses RCV battery pack only.
• Functional design with smooth, easy to clean surfaces.
• Side panels with ergonomically integrated operating controls and maintenance-friendly access.
• Reduce fuel consumption by as much as 15%.
• Reduction of noise (sound of container being lifted is noisier than the lifting system itself.)
• Emptying process with low dust/noise emissions and low-stress container handling.
• Low maintenance during the product lifecycle. (few moving parts, no oil)
• Quick lifting cycle (6 / 12 seconds)
• Lifting capacity: 250 kg per chair; 500 kg's in trade mode.
• Suitable for night collection, and for use in narrow streets.
• Safe and enjoyable to work with.
• Connection to BAS Digital Platform.

• Application - Domestic and Industrial containers
• Lift Configuration - Split Twin
• Mode - Auto / Trade
• Frame - S420 steel
• Auto Gather - Yes
• Underrun protection - YES
• Diagnostic display - YES
• N1 Switch - YES
• Shake function - YES
• Containers - EN840-1/-2 (120 L - 1100 L)
• Loading hight - 1565 mm (high level)
• Ground clearance 507 mm

• Lifting Capacity  - 160KG (split) / 500KG (linked)
• Total weight  - appx. 400KG
• Power - 100% Electric
• Electrical Connection to body - 24v DC
• Chassis battery requirement - 175Ah min., ideal 245Ah
• Ingress Protection rating - IP67
• Adjustable Cycle Time (secs) - 6.0 / 12.0
• Noise - 45dbA
• Safety - CE Machinery Directive, EN1501.1 & EN1501.5

• Collapsible pick-up arms - OPTIONAL
• 4-wheel container recognition
• Lid opener for EN 840-3 containers
• Diamond pick-up comb - OPTIONAL
• Weighing solution (DIFTAR) - OPTIONAL
• Chip reader in comb (RFID) - OPTIONAL
• Remote Connection - OPTIONAL
• Various sensors - OPTIONAL
• Paladin Containers - NO
• Painted finish - Standard BAS gold, or to customer specification
• BAS Digital Platform Access - OPTIONAL

The BAS E-LIFTER is easily installed and maintained.
