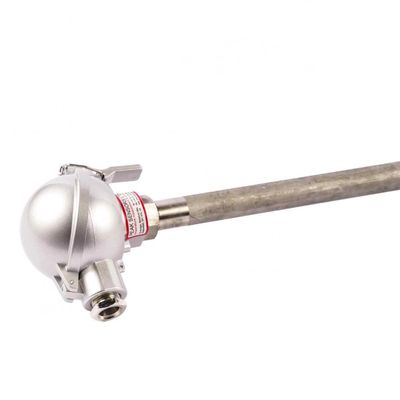

Peak Sensors - Base Metal Thermocouple Assembly with Ceramic Sheath
The sensor can be protected by a ceramic sheath. There are a variety of ceramic sheaths available each with its own properties. This sensor design is used in many different high temperature industries as it is very versatile.
- Range of thermocouple types to choose from
- Will withstand tough industrial use
- Special materials available on request
- Lining sheaths for porous materials available
- Shanks fitted for head assembly
- Adjustable or welded flange on shank
- Pressure tight design possible
Type Designation: BMC
Temperature Range: -200 to 1300 ° C depending on thermocouple sensor type
Common Sensor Types: K, J, N, T, E
Common Sheath Size: (ØD) Ø 6.0, 8.0, 10.0, 12.0, 13.0, 15.0, 17.0, 20.0, 25.0, 28.0, 50.0mm
Common Element Diameters: Ø 0.15mm to 0.5mm
Shank material: (SL) Plated Mild Steel, Stainless Steel , Chrome iron, Alloy 600.
Head options: ALA, KNE (IP65), HR AL BL (flip top), many others
Material: Max Temperature
Recrystalised alumina (alsint): 1750° C
Silicon carbide (recrystalised): 1600° C
Sillimanite 60: 1600° C
Aluminous Porcelain (pythagoras): 1500° C
Quartz: 1500° C
Silicon carbide (clay bonded): 1400° C
Syalon 101: 1000° C
