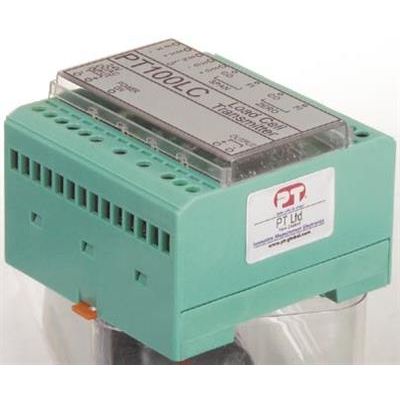

PT - Model PT100LC -Basic Analogue Load Cell Conditioner
FromPT Limited
Basic analogue output load cell conditioner. The PT100LC is a basic load cell conditioner with pre-set filtering and analogue output. It is easily mounted in control cabinets and connected to equipment with analogue input.
Most popular related searches
- Power Supply: 24 V DC or AC +/- 10%
- Power Consumption: 5.2 VA (max)
- Load Cell Type: All Strain Gauge Types, up to 4x 350Ω.
- Input Sensitivity: 1.5 or 3.5 mV/V full scale
Output
- 0~10 V (load resistance > 4k ohm)
- 4~20 mA (load resistance < 550 ohm)
- 0~20 mA (load resistance < 550 ohm)
- Non-linearity: Within 0.05% of full scale
- Zero Adjustment: 0~80 %, coarse and fine, maximum nullification 20 mV
- Span Adjustment: 100~20 %, coarse and fine.
- Dimensions: 75 mm x 75 mm x 55 mm (H). DIN rail mount.
- Operating Environment: -5 Deg. C to 60 Deg. C, 90 % non-condensing
- Load Cell Excitation Supply: 10 V DC
- Weight: 150 g (Approximate)
