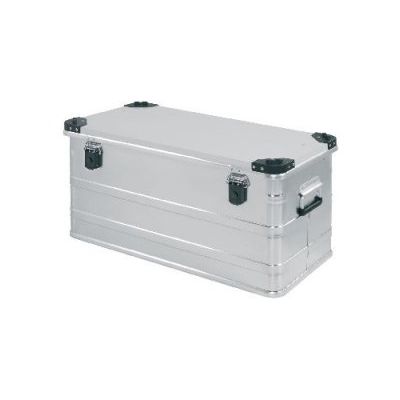

Alu Logic - Model DL 540 -Basic Box

This range offers an aluminum box for the industry or for everyone, requesting a safe and economical alubox.

The DL 540 range comprises 9 models. Capacities range from 29 to 425 liters. If one of these does not fit your requirement, we can make to your size.

Your advantages in detail - technical specification:

• Quality, endurable aluminium box. 1.0 mm aluminium sheet material on all sizes, strength and durability by design.
• 9 standard available sizes, stackable within range, offering options for logistical packing, storage and transport.

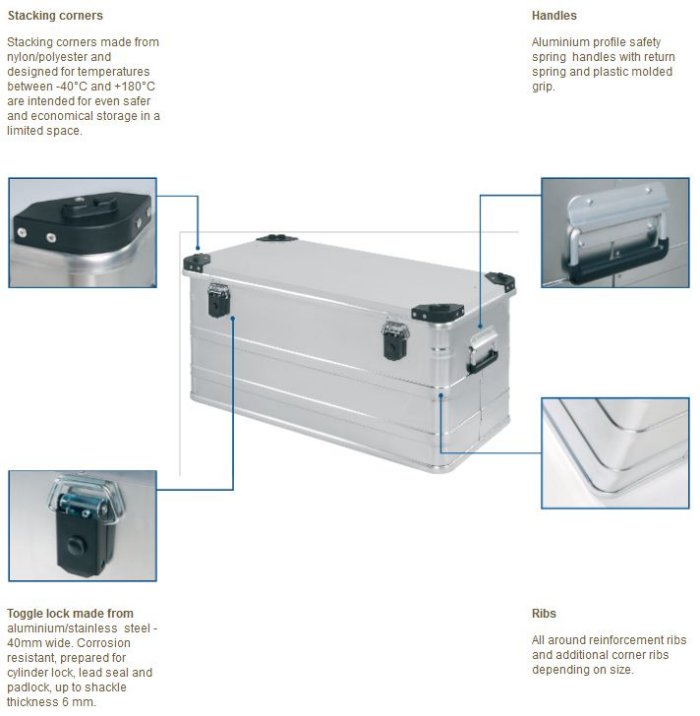

• Aluminum profile safety spring handles with plastic molded grip.
• Stacking corners made from nylon/polyester and designed for temperatures between -40°C and +180°C are intended for even safer and economical storage.
• Toggle lock made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.
• Corrosion resistant hinges with hinge damage prevention.
• All around reinforcement ribs and additional corner ribs depending on size.

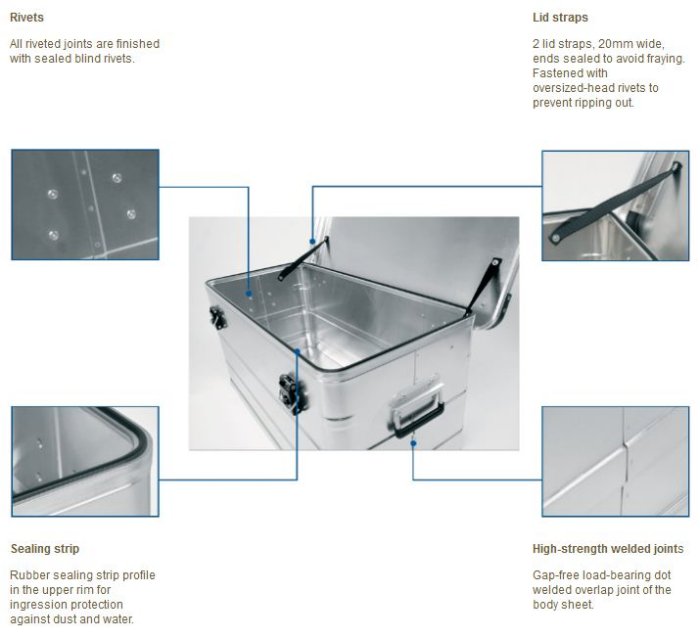

• High-strength welded joints. Gap-free load-bearing dot welded overlap joint of the body sheet.
• Rubber sealing profile in the upper rim for ingression protection against dust and water.
• All riveted joints with sealed blind rivets.

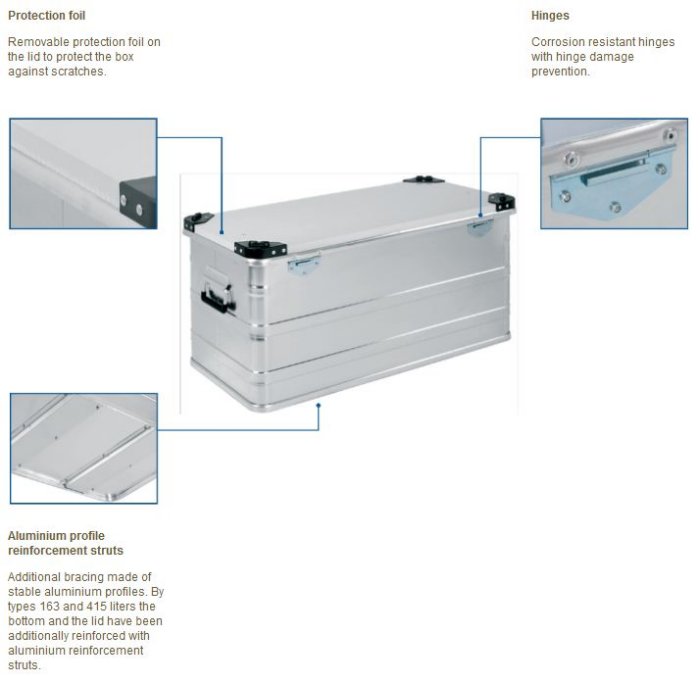

• By types 163 and 415 liters the bottom and the lid have been additionally reinforced with aluminium reinforcement struts.
• 2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
• 95-100° opening angle of the lid.
• Removable protection foil on the lid to protect the box against scratches.
• IP 54 standard design
