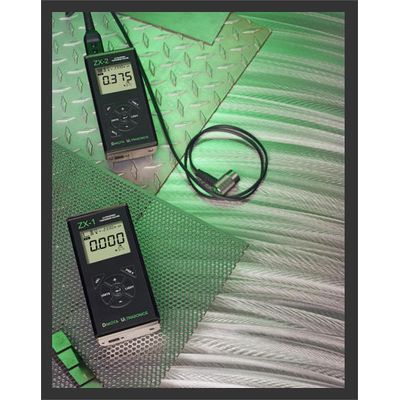

Advanced NDTModel Dakota ZX-1 & ZX-2 -Basic Fixed Velocity Ultrasonic Thickness Gauges

SHARE

The Dakota ZX-1 & ZX-2 are basic fixed velocity ultrasonic thickness gauges that require no special training to operate. The Dakota ZX-1 & ZX-2  basic fixed velocity ultrasonic thickness gauges. Calibration is done by simply scrolling to a known material velocity, or selecting a common material from a list of material types in the ZX-2.  The gauges were designed and built to withstand the roughest industry conditions, are affordable, and backed by a 5 year limited warranty.  If you’re looking for a quality instrument to reliably meet or exceed your application expectations, look no further.

Most popular related searches
  • Easy To Operate.
  • Pulse-echo measurement.
  • Dual element transducers (1-10MHz options).
  • 120MHz FPGA timing.
  • 150 volt square wave pulser.
  • Low temperature custom LCD display (-22 F / -30 C).
  • Adjustable material velocity.
  • Selectable material list (ZX-2 only).
  • IP65 protection rating.
  • 5 year limited warranty.
  • Corrosion & Pitting
  • Tube & Pipe
  • Tanks
  • Boilers
  • Glass
  • Variety of Applications
Other Ultrasonic Thickness Gauges are also available including our most popular Ultrasonic Thickness Tester the NOVA TG110-DL
