BatchPLUS - Small Wastewater Treatment Plants
With BatchPLUS our engineers have developed a future-proof product that has proven itself around the world, year after year. The BatchPLUS is adapting perfectly and always offers an above-average wastewater treatment. The quality of the system control makes the difference and your sewage so clean. BatchPLUS is a selected plant technology with plate aerators. With the FlexEN- technology, the BatchPLUS has low energy consumption and above-average reliability, low installation time and is cost and maintenance friendly. BatchPLUS is fully biological, and is available for the performance classes C, N, and D + P. BatchPLUS of course with DIBt approval and CE certification.
Process
This is how the SBR Process Works
1 The first chamber of the wastewater treatment plant is used for the separation of solids (primary treatment).
From there, the wastewater is fed for biological treatment into the second chamber.
2 During this process, and even some time after, the biological treatment zone is aerated. This means oxygen is specifically added. As a result the sludge is „activated“ and the microorganisms perform their cleaning work.
After aeration, a break/pause follows. Thereby, the clear water separates from the activated sludge. Now, first a precisely defined quantity of the treated wastewater is discharged.
3 Then, the excess part of the activated sludge is transported back to the first chamber. The biological treatment zone can now be recharged. Even here an excellent Effluent Quality*:
- COD: 41,6 mg/l - 93,7%
- BOD5: 8,6 mg/l - 97,2%
- NH4-N: 1,7 mg/l - 99,3%**
- Ntot,anorg.: 15,4 mg/l - 70,2%**
- SS: 13,9 mg/l - 96,4%
* Measured average values and determined efficiencies for 3K PLUS, Performance Class D, during the approval test in Germany by the independent experts at the Aachen Prüfinstitut für Abwassertechnik, short PIA
**Average values obtained for temperatures ≥ 12 °C
Retrofitting BatchPLUS® PURE
Retrofitting BatchPLUS® PURE

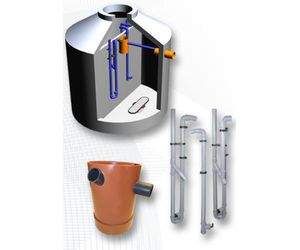

Retrofitting unit BatchPlus® PURE SBR process for retrofitting of existing tanks Product description: Prefabricated Kit for installation in on-site containers, consisting of:
- aeration device with plate air diffuser and concrete base
- lifting device for feeding
- pumping device for clearwater discharge with float switch
- pumping device for secondary sludge return
- sampling device
- performance classes: C, N, D, P +
- connection size: 4-50 pe (larger plants on request)
- National Technical Approvals: Z-55.3-120 (C), Z-55.3-121 (N), Z-55.3-70 (D), Z-55.3-102 (D+P)
DEUTSCHE DEWATEC BatchPLUS® Relax-Incredibly C...
DEUTSCHE DEWATEC BatchPLUS® Relax-Incredibly Comfortable!
Retrofitting unit BatchPlus®RELAX SBR process for retrofitting of existing tanks Product description: Prefabricated Kit with bracket for easy hanging on the partition wall for installation in on-site containers, consisting of:- aeration device with plate air diffuser and concrete base
- bracket with prefabricated lifting device for feeding, clearwater discharge with float switch and secondary sludge return
- sampling device
- performance classes: C, N, D, P +
- connection size: 4-16 pe (only suitable for single tank applications with partition wall)
- National Technical Approvals:
- Z-55.3-120 (C), Z-55.3-121 (N), Z-55.3-70 (D), Z-55.3-102 (D+P)
Package Plant
Both complete plant systems have low energy requirements by FlexEN technology.
- • Future proof - the plant can easily be retrofitted if the purification requirements become more stringent in the future
- • Low energy requirements thanks to FlexEN®-technology - if less wastewater runs into the system, the plant automatically switches into an optimum, energy-saving operating mode
- • Low maintenance effort - thanks to advanced technology and the grouping of technical units away from the pit and the wastewater
- • Interior or exterior switch cabinet - optional depending upon your requirements and desires
- • Integrated sampling device - therefore, no additional transition or inspection chamber is required
DEUTSCHE DEWATEC BatchPLUS® & Rectangular ...

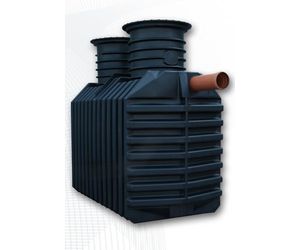

DEUTSCHE DEWATEC BatchPLUS® & Rectangular Tank Completely preassembled system!
The jointless rectangular tank offers reliability over decades by its structure and wall thickness. With this, its dimensions and weight are so small, that the installation can be realised quick and easy, garden friendly and cost effective with minimal excavation – what could be better!
DIBt-approval and CE-compliant Hardly any other purification system in Europe has been tested as often, so rigorously and achieved such excellent results.
Future proof - the plant can easily be retrofitted if the purification requirements become more stringent in the future Low energy requirements thanks to FlexEN®-technology - if less wastewater runs into the system, the plant automatically switches into an optimum, energy-saving operating mode
Interior or exterior switch cabinet - optional, depending upon your requirements and desires Low maintenance effort - thanks to advanced technology and the grouping of technical units away from the pit and the wastewater
Integrated sampling device - therefore, no additional transition or inspection chamber is required -approval mark
- Z-55.3-120 - purification class C
- Z-55.3-121 - purification class N
- Z-55.3- 70 - purification class D
- Z-55.3-102 - purification class+P
Package Plant
Package Plant

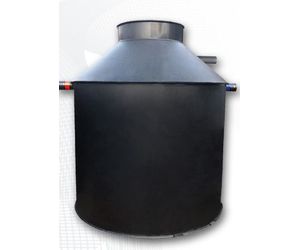

DEUTSCHE DEWATEC BatchPLUS® & Cylindrical Tank Package Plant with a customized and tailor-made manufacturing for your needs! Both complete plant systems have low energy requirements by FlexEN® technology. In case the wastewater inflow is low, the unit automatically switches to a best, power saving operating mode.
Low maintenance expenses due to mature technology and the bundling of technical units outside the tank and the wastewater. The cylindrical plastic tanks of DEUTSCHEN DEWATEC offers a variety of product features, beyond compition. With 3 standard diameters it is ideally suitable for new installations as well as for retrofitting of existing concrete tank.
A customized and tailor-made production for your requirements is possible. Easy installation by fully preassembled system – which leads to fault free installation and less time requirement for commissioning. Custom-fit to your existing underground tank - no need for excavation and heavy construction machinery. Modular system: all components of the tank equipment are accessible without major installation efforts.
Europ. Patent EP 1380545A1
