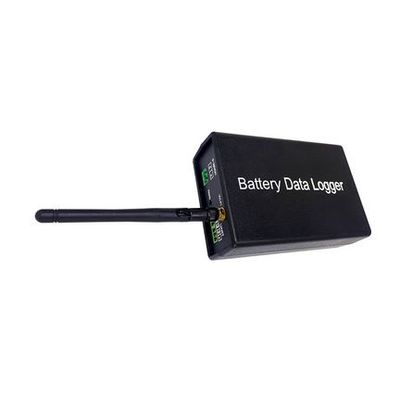

Thomson - Model DFT-6500 -Battery Data Logger
DFT-6500 Battery Data Logger is a wireless monitoring system that takes the battery terminal voltage, the total voltage of the battery pack, the total current of the battery pack and the temperature of the environment where the battery pack is located as the main monitoring parameters, monitors the battery performance and state in real time and analyzes the battery performance development trend to judge the battery service life. The system can track the performance balance of the battery, when the performance of the serious deterioration of the faulty battery is found, the system will immediately alarm, for the battery pack "fine" maintenance to provide a basis.
Most popular related searches
data logger
remote monitoring system
remote monitoring
automatic monitoring
real-time analyzer
field data
inspection data
- With network alarm function.
- Automatic timed inspection of battery terminal voltage, automatic recording of test data.
- Controlled inspection of battery terminal voltage, automatic recording of test data.
- Automatically monitor the performance balance of the battery pack, diagnose the battery failure, and automatically alarm when the battery fails.
- Operation via Ethernet, data uploaded to the computer via Ethernet.
- The performance status of a single cell battery can be observed both in the field and in the data center. The logo is clear and the display is intuitive.
- On-site detection does not require manual intervention, which can avoid the risks of short circuit, electric shock and load power failure caused by manual operation errors.
- Fully isolated independent test loop, neither interfered with by user equipment, nor affect the normal operation of user equipment and battery pack.
- Battery resource management is fully digitized and informative.
- Communication: Ethernet interface/ WIFI
- Single-cell voltage: 2V/6V/12V: Accuracy 0.5%rdg+6dgt
- Overall voltage range: 12-380V (depending on each String Total voltage box.)
- Overall current range: 0-200A(optional current clamp)
- Connections channel: Max 128 per String
- Sample bits: 16
- Monitor Battery String: Max 9
- Working environment: -20~-40
- Size(mm): 240×200×100
