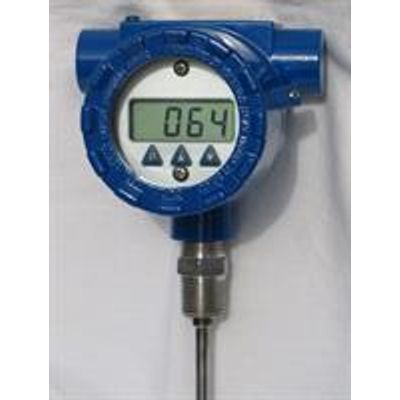

TTEC - Model 8080KNA-AS-2.5 -Battery Operated Digital Temperature Indicator RTD Assembly
The TTEC Model 8080KN RTD Assembly includes a Battery Operated Digital Indicator & RTD for local temperature indication. The assembly is designed for use in Process Industries where vibration, corrosive atmospheres & inclement weather prevail. The electronics are enclosed in an epoxy coated Aluminum or 316SS NEMA 4X housing. Options include: an additional sensor output (Model 8080KC), which can be used for indicating, alarm or control purposes, Thermocouple versions, and Explosion Proof Certifications.
Most popular related searches
battery operated digital temperature indicator
temperature indicator
epoxy coating
RTD sensor
bimetal thermometer
industrial vibration
atmospheric corrosion
thermocouple
thermowell
thermometer
- Available with TTEC Series 10000 & QW1 “KWIK-SHIP" Thermowells.
- Replace Bimetal Thermometers with RTD Accuracy!
- Versatile: Covers entire range from -58ºF to 900ºF (-50ºC to 482ºC)
- Rugged NEMA 4X Enclosure (Epoxy coated Cast Aluminum or 316SS)
- ºF / ºC Display
- PT100 RTD Sensor (Replaceable)
- Stainless Steel Sheath (.250 in O.D.)
- 1/2 NPT Mounting
- Indication Accuracy 1º
Length measured from tip to hex of fitting.
Custom Lengths/Sensor Designs Available
- Style: 8080
- Housing Material: Cast Aluminum
- Display Height: 5.000 in
- Length: 2-1/2 in
- Temperature Range:
- -58 to 900 ºF
- -50 to 482 ºC
