Bonnen Battery - Model 100V LiFePO4 -Battery Pack for Electric Vehicles and Specialty Applications
The 100V nominal LiFePO4 (LFP) battery pack by Bonnen Battery is engineered for use in electric vehicle conversions, low-speed vehicles, light commercial vehicles, and specialty vehicles. Designed for reliability and safety, it employs high-grade LFP cells known for their stability, long cycle life of over 4000 cycles at 80% Depth of Discharge, and reduced thermal risk. This IP67-rated enclosure provides dust and temporary water immersion protection, making it suitable for challenging environments. It integrates a sophisticated Battery Management System (BMS) with CAN bus communication capability for optimized vehicle integration. With customizable voltage, capacity, and dimensions, this battery pack facilitates seamless adaptation to various project specifications. Additionally, Bonnen Battery offers continuous support and engineering services to ensure successful integration and operation. The pack's modular assembly and fast-charging readiness significantly enhance its usability across varied climatic conditions.
As an EV battery project manager, we recommend this 100V LiFePO4 pack for dependable, safe power in conversions and low-speed/light commercial EVs. It’s built for tough environments (IP67) and for project customization.

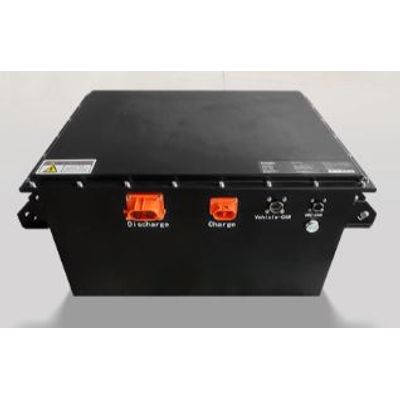

This is a 100 volt nominal LiFePO4 (LFP) battery ⇱ pack designed for electric car conversions, low-speed vehicles (LSVs), light commercial vehicles, and specialty vehicles. The pack uses LiFePO4 cells for strong safety, long life, and stable performance. The enclosure is IP67 rated — dust tight and protected against temporary water immersion — so it works in rough, wet, or dusty field conditions. We build the pack to be modular and serviceable, with an integrated Battery Management System (BMS) and vehicle communication options.
- Superior LiFePO4 Chemistry: We use top-grade LFP cells known for their stability and safety. This means a lower risk of thermal runaway compared to other lithium chemistries, giving you peace of mind.
- Long Cycle Life: Built to last for 4,000+ cycles at 80% DOD (Depth of Discharge). This means a longer vehicle lifespan and a lower total cost of ownership for your clients.
- Advanced Onboard BMS ⇱: Our integrated Battery Management System (BMS) actively monitors and protects against over-charge, over-discharge, short circuits, and extreme temps, ensuring peak performance and safety.
- Rugged IP67-Rated ⇱ Enclosure: Fully protected against dust and water. This all-weather design makes it ideal for vehicles operating in demanding outdoor or industrial environments.
- High Energy Density: Get more range without the extra weight. Our smart design packs maximum power into a compact and efficient form factor, simplifying your vehicle integration.
- Fast-Charging Ready: Minimize downtime. This battery pack is engineered to handle rapid charging protocols, getting your vehicles back on the road faster.
- Wide Operating Temperature Range: From cold starts to hot operating conditions, our battery delivers consistent, reliable power when you need it most.
- Fully Customizable for Your Project: Your project is unique, and your battery should be too. We offer full customization of voltage, capacity (Ah), physical dimensions, and communication protocols (like CAN bus) to perfectly match your specs.
- Nominal Voltage : 102.4V
- Rated Capacity : 173Ah
- Energy : 17.7KWH
- Recommend Charge Current : 60A
- Max continuous discharge Current : 173A
- Peak discharge Current : 300A (3S)
- Working Voltage Range : 80 -116.8V
- BMS with CAN communication : Yes
- Dimension(L×W×H) : 680*460*350mm
- Battery Weight : 145KGS
- Housing : Metal
- IP : 67
- Cycle Life : More than 4000 Times
- Operating Temperature : Charge: 0ºC~45ºC
- Discharge: -20ºC~60ºC
