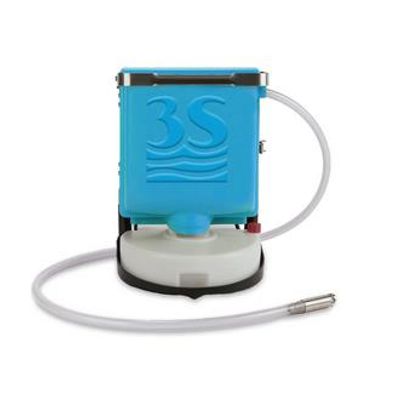

Aqua-Compact - Battery Powered Portable Sampler

Our portable samplers selection consists of three models: the AQUA-COMPACT, the AQUA-COOLBOX and the versatile AQUA-MULTIX.

All can be powered by 110/220 VAC POWER, or an external 12VDC supply, or via an integral battery that can provide up to 350 samples on a full charge.

The air pump vacuum sampling system featured within every AQUA Module provides for a reliable, representative and repeatable sample without the weaknesses that can be associated with alternative sampling techniques. Programming set-up is very simple, with sample volumes from 50-500 mL (and above, using multiple shots/sample events) and sample intervals from 1 minute to almost 100 hours.

Sample extraction frequency can be time based or triggered by external sources such as flow meters, level sensors, pH meters, on-line analyzers, PLC’s etc. Ambient working temperature range: 14°F (-10°C) to 122°F (50°C). Also, any of the Samplers can be supplied with a Sample Temperature Monitoring Facility. With this option, the minimum, maximum, average and present sample temperatures can by monitored on the display. Additionally all the Portable Samplers can be fitted with a Data Connection facility. This enables the download of logged sample temperature data from the Sampler Module to a PC (or similar) via the USB connection.

It is possible to extract samples from a pressurized effluent source, using the Pressurized Pipeline Interface.

Product code

• AQUA-COMPACT - Compact Sampler

• 0-100pt-co
• 0-500pt-co
• 0-1000pt-co
