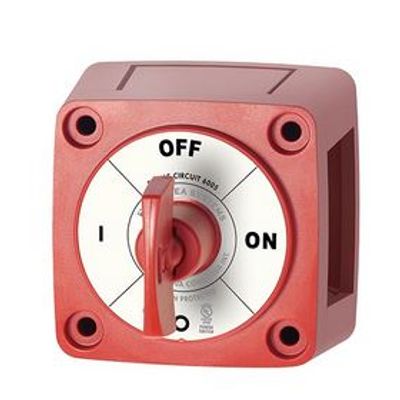

Blue Sea - Model M-Series -6005 -Battery Switch

• Part No.?  BS/6005
• Switch Type?  Single Circuit ON-OFF
• Color  Red
• Switch Positions  2
• Battery Combine  No
• Alternator Field Disconnect?  No
• Maximum Voltage  48V DC
• Terminal Stud Torque  120 in-lb (13.56 Nm)
• Continuous Rating?  300A
• Intermittent Rating?  500A (5 min)
• Cranking Rating 10 sec?  1500A
• Cranking Rating 1 min?  775A
• Battery Inputs  1
• Cable Clearance For 4/0 AWG Cables  1.12in (28.45 mm)
• Cable Size to Meet Ratings  4/0 AWG (120mm?)
• Mounting Holes  Accept #10 Screw
• Terminal Stud Size  3/8″ – 16 (M10)
• Weight  0.62lb (0.28 kg)

Blue Sea Systems’ m-Series Battery Switch, available in four practical models, is a great choice for most boaters. Its “mini” size, flexible mounting options, and current-carrying capacity make this battery switch a wise choice. The m-Series switch is versatile enough to meet just about any battery switch application for small and medium-size boats. It is very compact, measuring less than 3″ by 3″ (7.6cm X 7.6cm), making it ideal for installations where there are size and space constraints. In spite of its size, its current-carrying capacity exceeds many standard-size switches.

• Removable Key
• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8″ (M10) ring terminals
• 7/8″ (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time
• Isolating cover with three snap-in side pieces protects rear contacts and allows sire access in any direction
• Case design allows surface, rear, or front panel mounting options
• Switches a single battery to a single load group
• Ignition protected?safe for installation aboard gasoline powered boats

• Weight 0.28 kg
