Baugh & Weedon - Bespoke Penetrant Lines

Designed and manufactured in the UK, the Baugh & Weedon Penetrant Plants are built using high quality stainless steel, built for longevity, in even the harshest industrial environments.

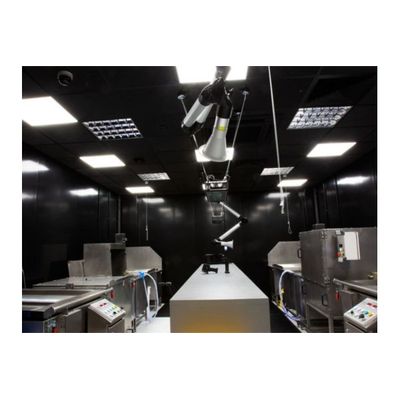

Baugh & Weedon offers bespoke Penetrant Lines that are designed and manufactured to your application needs and fit your layout requirements including the traditional configurations such as Straight Line, Parallel Straight lines, “U” and “L” formats.  The working height of our Penetrant Lines is 900mm from floor level, all units embody stainless steel tanks and frames, not coatings are used.

We can provide all or part of the complete process line including Penetrant Tanks, Wash Stations, Drying Ovens (front loading and top opening), Dust Storm Cabinets (front loading and top opening), Viewing Booths (with UV and/or white light sources), all associated accessories such as hand held inspection lamps, overhead UV lights.

• Stainless Steel Construction

Standard dimension are:

• (All products are 900mm high)

Penetrant Application Tanks

• 450mm(w) x 500mm(d)
• 650mm(w)  x 600mm(d)
• 900mm(w) x 600mm(d)

Emulsifier Tank

• 450mm(w) x 500mm(d)

Post Emulsifier Tank

• 650mm(w)  x 600mm(d)
• 900mm(w) x 600mm(d)

Drain Areas

• 450mm x 600mm
• 850mm x 600mm

Wash Station

• Includes Air/water wash gun, splash guards, temperature controls, UV light giving 300μW/cm² at the wash position etc.
• 850mm x 600mm
• 1200mm x 600mm
• Black Out Canopies available for Standard wash stations zones, and bespoke areas.

Drying Ovens

• Digital temperature control and independent temperature control.
• 450mm x 500mm (Top opening)
• 900mm x 600mm (Top opening)
• 900mm x 600mm (Front opening)

Dust Storm Cabinets

• 450mm x 900mm x 500mm
• 900mm x 900mm x 600mm
