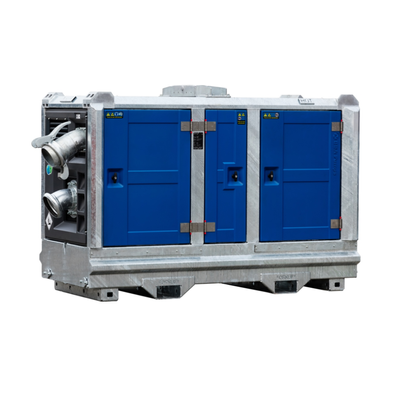

BBA Pumps - Model BA180KS D315 -8-Inch Diesel Driven Sewage Pump
The BA180KS is an 8-inch diesel driven sewage pump and equipped with a priming system. With the unique screw channel impeller, it allows you to pump wastewater with large solids and long fibrous materials. The modern diesel engine is clean, quiet, economical and has a variable speed. The control panel features automatic level control in order to cope with the changing sewage water supply. The canopy is super quiet and fitted with all possible safety features for carefree pumping in urban areas.
The best choice for pumping sewage and wastewater.
- Solids handling of 125 mm
- Pump flow up to 580 m³/hour
- Maximum total head of 41 mwc
- 4 years BBA Pumps limited warranty
The pumpset is prepared for mounting on a trailer as an additional option.
Centrifugal Pump
The BA180KS is an 8-inch BBA Pumps centrifugal pump with screw channel impeller. The large solids handling is unparalleled at 125 mm, making this a real sewage waste warrior. Best-in-class pump efficiency and an excellent NPSH curve lead to an ultra-performing unit. Other standard features are large inspection covers, suction and pressure gauges and a heavy duty bearing frame with an extra oil chamber for dry running.
Priming System
Featuring a fully automatic priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. A genuine BBA Pumps priming system includes a diaphragm vacuum pump, a check valve on the discharge side and a float box for air-water separation on the suction side.
Diesel Engine
The pump is driven by a clean and economical Hatz diesel engine. The electronically controlled variable speed engine meets the stage V emission requirements. Low fuel consumption and minimal noise emissions are key features of this engine.
Sound Attenuated Canopy
BBA Pumps canopies are known as the most innovative and robust in the world. Pumps in sound attenuated canopies are super quiet, safe to use and protected against the elements. The fully self-contained unit features a composite fuel tank and fluid containment system. To aid mobility, the forklift pockets and lifting eyes are fitted as standard.
Available Options
- Pump trailers
- Pump telematics linQ
- Stainless steel 316 wet-end
- Cold climate package
- Portable piping products
- Discharge x Suction: 8" x 8"
- Max. flow: 580 m³/h
- Max. head: 41 mwc
- Free passage: 125 mm
- Priming system: MP50 (50 m³/h)
- Engine: Hatz
- Max. speed: 1750 rpm
- Fuel consumption at BEP: 9 l/h
- Canopy: M10-23X
- Sound level: 64 dB at 10 m
- Dimensions L x W x H: 2270 x 1050 x 1595 mm
- Dry weight: 1750 kg
- Warranty: 4 years
