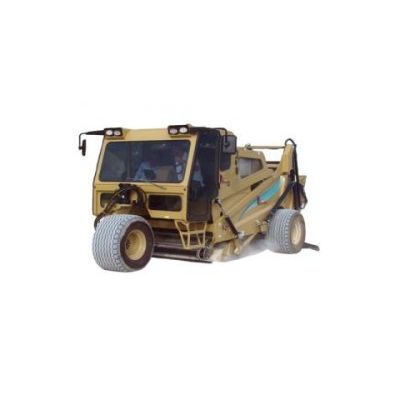

Cherrington - Model 5500 -Beach Cleaner

Cherrington Model 5500 Beach Cleaner / Mobile Screener Detailed Overview:

The Cherrington Model 5500 beach cleaner is Self-propelled, all-wheel drive Beach Cleaner is unmatched for maneuverability, operator comfort, and ease of operational control.

Large Beach Cleaner Models:

Features of this innovative new beach cleaner are:

• Three-wheel, zero-turn radius
• Single Screen Oscillation System
• Direct drive hydraulic motor on conveyor system
• Low Maintenance!  Conveyor system has only three bearings, pre-stressed drive chain with solid chrome pins, and carbide wear points.
• Pressurized, air conditioned cab
• State of the art controls and camera monitoring of the conveyor/screen bed as well as behind the machine.
• Night-time operating lights
• 1.5 cu yd (1.2 cu m) hopper, standard; 1.8 cu yd (1.4 cu m) hopper, optional
• Screening depth: Up to 6″ (152mm)
• Screening width:  60″ (1524mm)

Additional Information:

• Powered by a 60 hp (45 kW) John Deere Diesel Engine.

Features

Cherrington Model 5500 Beach Cleaner / Mobile Screener Detailed Standard Specifications:

• Length: 17’4″
• Width: 8’1″
• Height: 8’2″
• Weight: 9,550 lbs
• Maximum Screen width: 5′ (60″)
• Screen Depth: Up to 6′
• Hopper Capacity: 1.5 cu yd (1.8 cu yd optional)
• Hopper Dump Height: 8’6″
• Rear Grooming Width: 9’2″
• Maximum Clean Speed: 8.5 mph
• Tow Requirements: Not Applicable

Cherrington Model 5500 Beach Cleaner / Mobile Screener Detailed Metric Specifications:

• Length: 5,283 mm
• Width: 2,464 mm
• Height: 2,489 mm
• Weight: 4,332 kg
• Maximum Screen width: 1,524 mm
• Screen Depth: Up to 152 mm
• Hopper Capacity: 1.2 cu m (1.4 cu m optional)
• Hopper Dump Height: 2,591 mm
• Rear Grooming Width: 2,794 mm
• Maximum Clean Speed: 14 kph
• Tow Requirements: Not Applicable
