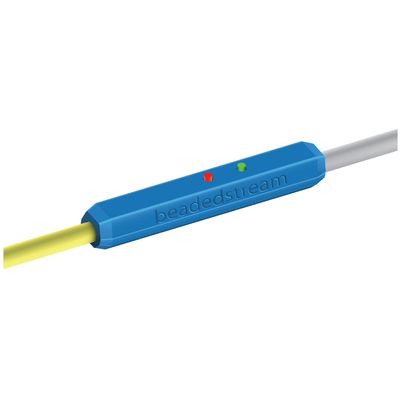

beadedstream - Model MLink -Connectivity & Data Loggers
Close the communication gap. For data loggers, industrial automation, SCADA, and embedded systems in rugged environments. An MLink turns any beadedstream Digital Temperature Cable (DTC) into a Modbus or JSON node. MLinks are molded in-line with DTCs at the factory. Use an MLink for the most rugged and space-constrained protocol conversion needs.
Most popular related searches
- Plug & Play
- Built in to the cable
- Small form factor
- Module Version: In-line DTC Node
- Protection Class: IP68
- Embedded Controller:
- Low-power, high performance, industrial microcontroller
- Multi-thread custom embedded OS
- Plug & Play configuration
- Protocols:
- Modbus ASCII
- Modbus RTU
- JSON
- Physical Layer: RS-485
- Wiring Interface:
- RS485-A Power
- RS485-B Ground
- LEDs: Red - Status
- Green - Activity
- Power:
- 6 to 15 VDC (max) input
- Idle Current: 4 mA typical
- Active Current: 70mA + 1mA per sensor typical (200mA max)
- Configurable Baud Rate: 1,200 to 115,200 bps
- Operating Range: -40° C to +85° C (-40° F to +185° F)
- Outer Jacket & Node Construction:
- Polyurethane for low-temperature flexibility
- Optional armored feature with proven resistance to wildlife
- UV stabilized. Cut and abrasion resistant.
- Dimensions: 90mm (3.54in) (length) x 15mm (0.59in) (diameter)
