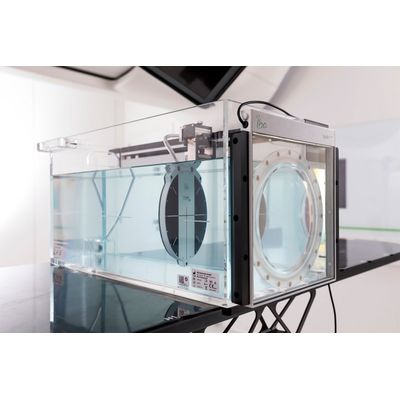

Blue Phantom - Model PT -Beam Commissioning Machine for Pencil Beam Scanning
IBA Dosimetry has been providing innovative dosimetry equipment and services to more than 4,000 satisfied water phantom users worldwide for over 40 years. Our newest solution for depth dose measurements, the Blue Phantom PT, is specifically designed for Proton Therapy (PT) Pencil Beam Scanning (PBS).
The Blue Phantom PT facilitates faster and more accurate commissioning of PT treatment systems, which is fundamental for safer patient treatments.
With integrated scanning software myQA Accept, the Blue Phantom PT is the technically superior water phantom solution for Proton Therapy beam scanning.
-
Compact design & minimum water volume enables faster filling
-
Easy handling & positioning for 50% faster setup
-
Weight: 12 kg (without water)
-
Fast positioning speed with chamber movement of 20 mm/s saves time
- Accurate detector positioning down to +/- 50µm
- Laser calibration certifies accuracy
- Magnetic resistant positioning sensor is fully compatible with all PT systems
- Thin, easily replaceable PMMA window for low range measurements
- Scan range up to 380 mm water equivalent depth
- Step-by-step & continuous scanning mode
- With the entrance window (3 mm physical / 3.5 mm WET) and a Stingray (WET of 5 mm), the minimum depth is 8.5 mm
- The Blue Phantom PT is fully integrated in the myQA workflow
- Large ionization chamber Stingray for accurate Bragg peak measurements
- PPC40 and PPC05 for absolute dose measurements
- Stealth Chamber with dedicated holder for reference measurements
-
Exterior water tank dimensions: 57 x 28 x 27 cm3
-
Weight: 12 kg (without water)
-
Scanning range: up to 380 mm water equivalent depth
-
Sensor resolution: 0.001 mm
-
Position resolution: 0.1 mm
-
Positioning accuracy: +/- 0.05 mm
-
Positioning reproducibility: +/- 0.03 mm
-
Positioning speed: up to 20 mm/s
-
Thin window: 3-5 mm
-
Wall thickness / material: 10 mm/ PMMA
