Photonic Tools - Model BLS -Beam Launching System - Modular Free-Space Beam Delivery System

SHARE

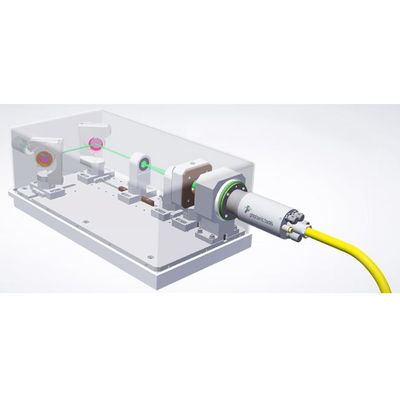

PT Photonic Tools offers an innovative Beam Launching System (BLS) that is a modular, free-space beam delivery solution. The system includes various modules such as 90° beam deflection modules with precise adjustment capabilities, lens modules, rotary modules, and lens modules equipped with x,y-adjustment. Additionally, it features an LLK receptacle, making it highly versatile for different photonic applications. The system can be customized, and additional cooling packages are available if needed to handle high-power operations. All technical specifications are subject to change, ensuring that the system meets the evolving needs of ultrafast and high-kilowatt laser applications.

  • Beam parameter acceptance : Single mode laser beam radiation
  • Typical input beam diameter : 1 - 5 mm
  • Typical beam waist position : +/- 500 mm from entrance
  • Wavelength : 980 - 1100 nm *
  • Clear aperture : Ø 15 mm
  • Pulse energy : Max. 500 µJ

Modules

  • 90° beam deflection modules with adjustment
  • Dimensions optical element : Ø 25.4 mm, thickness max. 6.35 mm *
  • Adjustment range / resolution : +/- 1.5°, 50 µrad
  • Lens module
  • Dimensions optical element : Ø 25.4 mm, thickness max. 6.35 mm
  • Adjustment range / resolution : Free along optical axis / 0.1 mm
  • Rotary module
  • Dimensions optical element : Ø 25.4 mm, thickness max. 6.35 mm
  • Adjustment range / resolution : 360° / 0.1°
  • Lens module with x,y-adjustment
  • Dimensions optical element : Ø 25.4 mm, thickness max. 6.35 mm
  • Adjustment range / resolution : +/- 1 mm / 2 µm
  • LLK receptacle
  • LLK connector : PT-F (Photonic Tools flange design), *

Dimensions

  • Dimensions (typical bam launching configuration) : Approx. 300 mm x 200 mm x 200 mm
  • Weight (typical beam launching configuration) : 13.5 kg
