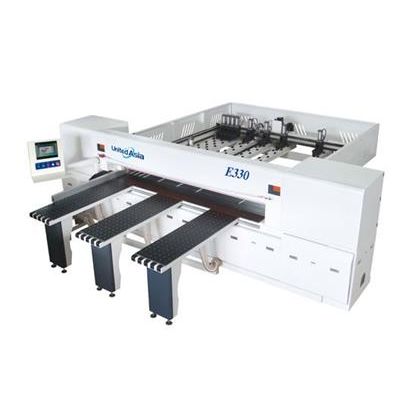

United-Asia - Model E330 -Beam Saw Machine

Max.cutting length 3280mm. Max.cutting thickness 95mm. Main saw blade diameter 0400mm. Main saw blade liner diameter 030mm. Main saw rotating speed 4800rpm. Scoring saw blade diameter 0180mm. Scoring saw blade liner diameter 030mm. Scoring saw blade liner diameter 6500rpm. Saw carriage forward speed adjustable 1H30m/min. Saw carriage backward speed 100m/min. Main saw motor 13kw. Saw carriage driving motor 1.5kw. Automatic feeding motor 1.5kw(AC servomotor). Total power 20.2kw. Automatic feeding speed 42m/min. Air pressure 5-7kg/cm2. Working table height from ground level 900mm. Weight 6200kg. Dimension(Lx Wx H) 5830 x 6630 x1750mm.
