Omega - Model W4617 - 50/50BS/35MM*45MM -Beam Splitter

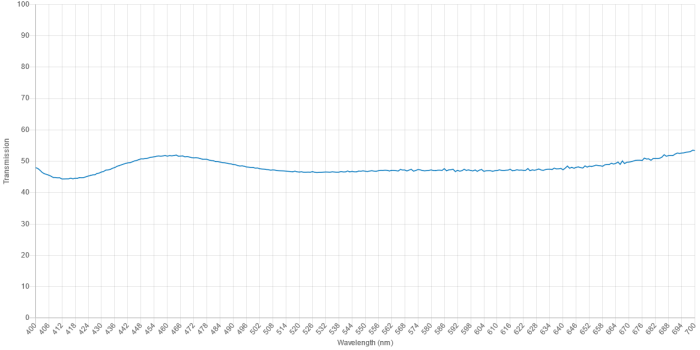

The spectral curve and ascii data is a typical representation of this filter’s performance, but will vary due to production and design variations. Omega only guarantees this part to meet the product specifications listed.
- Transmission: 50% +/-5% 400-700nm
- Transmitted Wavefront Distortion: ns
- Angle of Incidence: 45
- Minimum Surface Quality Assembly per MIL-C-48497A (F scratch/ F Dig)
- Coating Type: Surface Coating
- Filter Type: Beam Splitter
- Filter Application: Beam Splitter
- Half-cone AOI: 0
- Fluorescence Component: Beam Splitter
- Reflection: 50% +/-5% peak 400-700nm
- Flatness: ns
- Parallelism: ns
- AR Coating: None
